Portable Truck Axle Scale,Ultra Thin Wheel Weigh Pad


PDF Export

  • Zhejiang, China
  • SAINTBOND Wheel Weigh Pad
  • AS010W(4PCS) Wheel Weigh Pad
  • 110V , 220V or according to customer's requirement
  • LED or LCD

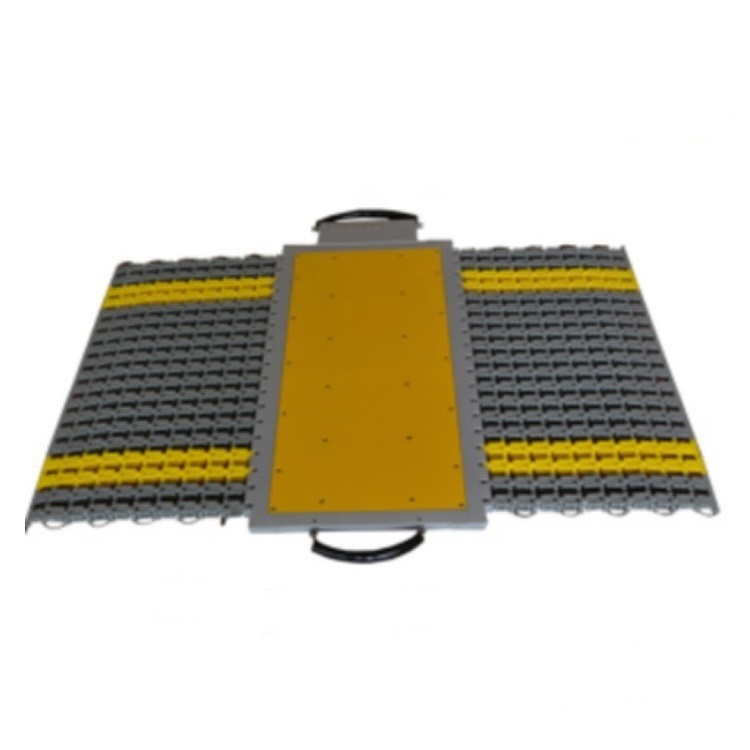

  • Wheel Weigh Pad
  • Aluminum-alloy
  • Welcome
  • 1pcs per type per capacity
  • 25~45 DAYS
  • OEM & ODM Manufacture

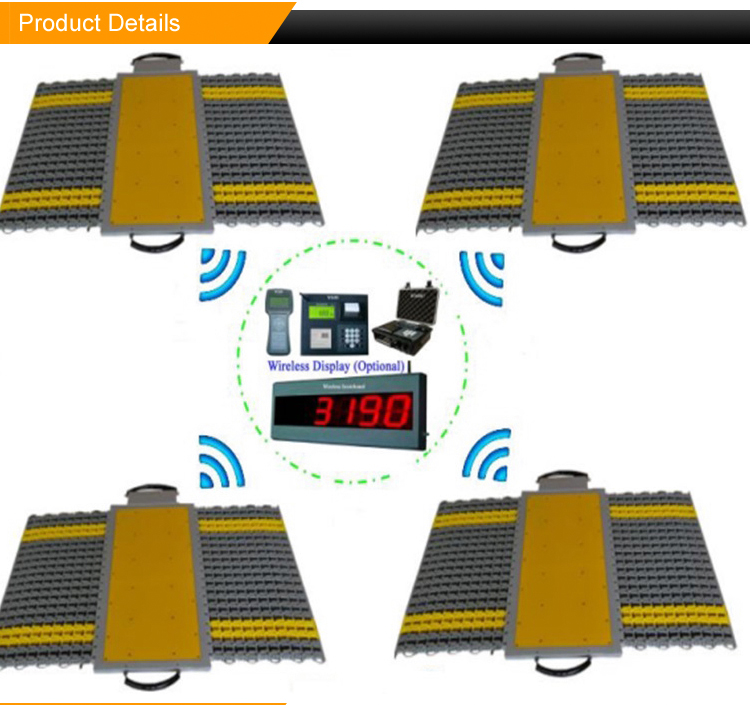

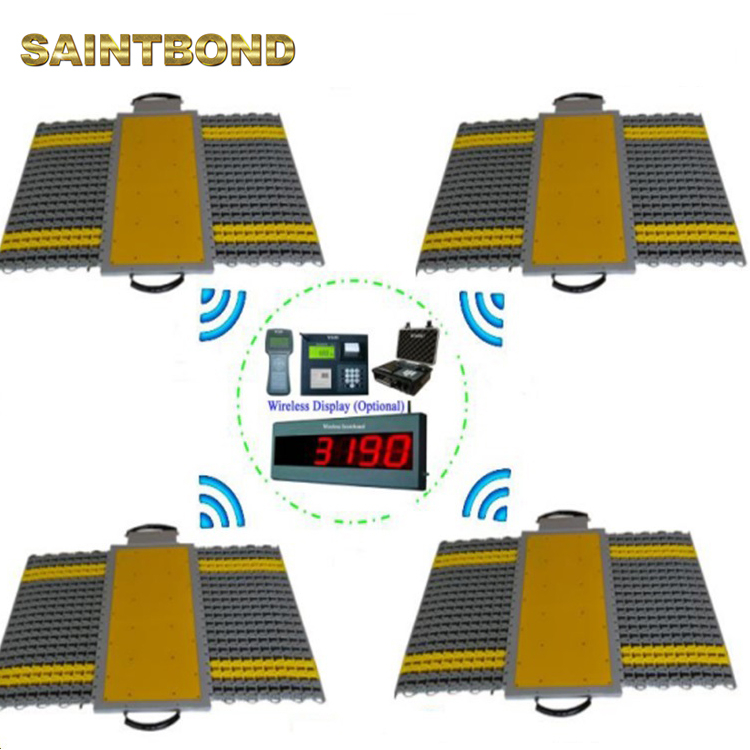

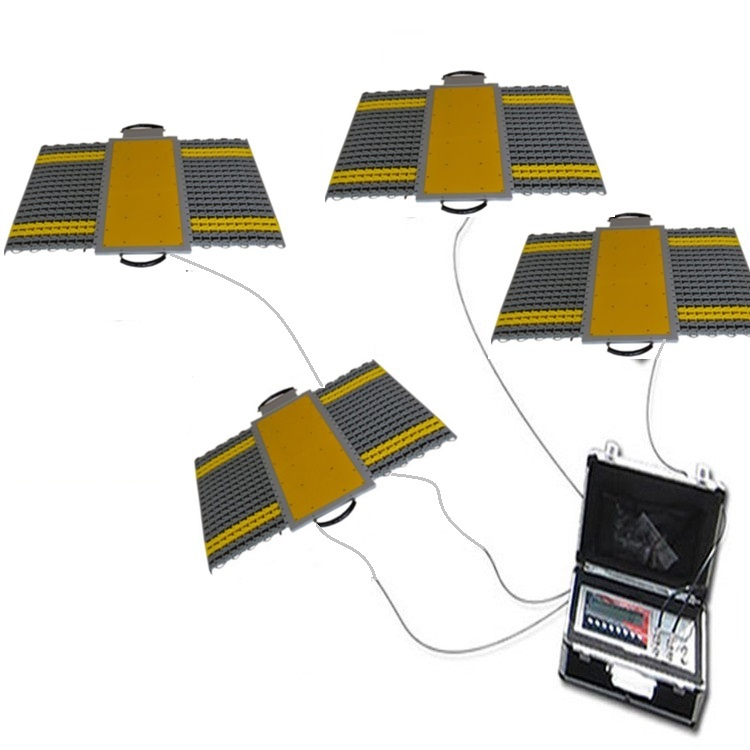

Portable Truck Axle Scale,Ultra Thin Wheel Weigh Pad



Wireless Specification

A/D conversion method

Σ-Δ 24bit

Input signal range


Load cell excitation


Max. connection number of load cell


Load cell connection mode

4 wire

Operating temperature

-10 °C ~40 °C

Allowable working temperature

-40 ° C ~ 70 ° C

Wireless transmission frequency

430MHz to 470MHz

Wireless transmission distance

300 meters (In Open Place)

Weighing Pad Product Parameters

Rated load:10/15/20T

Compensated temp.range(℃): -10~+50

Dynamic error (%F.S): 3 (5~10km/h)

Static error (%F.S):0.1~0.3

Static comprehensive error(%F.S): 0.1~0.5

Insulation resistance(MΩ): ≥5000(100VDC)

Rated output(mV/V): 1.0±0.1

Use temp.range(℃): -30~+80

Non-linearity(%F.S): 0.2

Temp.effect on zero(F.S/10℃): 0.03

Error on corners(%F.S): 0.2

Temp.effect on span(F.S/10℃): 0.05

Repeatariy(%F.S): 0.05

Safe overload(%): 120

Zero balance(%F.S): ±1

Ultimate overload(%): 150

Excitation voltage(VDC): 9~15

Net weight(kg): 45

Recommended voltage(V): 10

Defend grade: IP66

Dynamic comprehensive error(%F.S): 1.5 (1~5km/h) 3 (5~10km/h)
