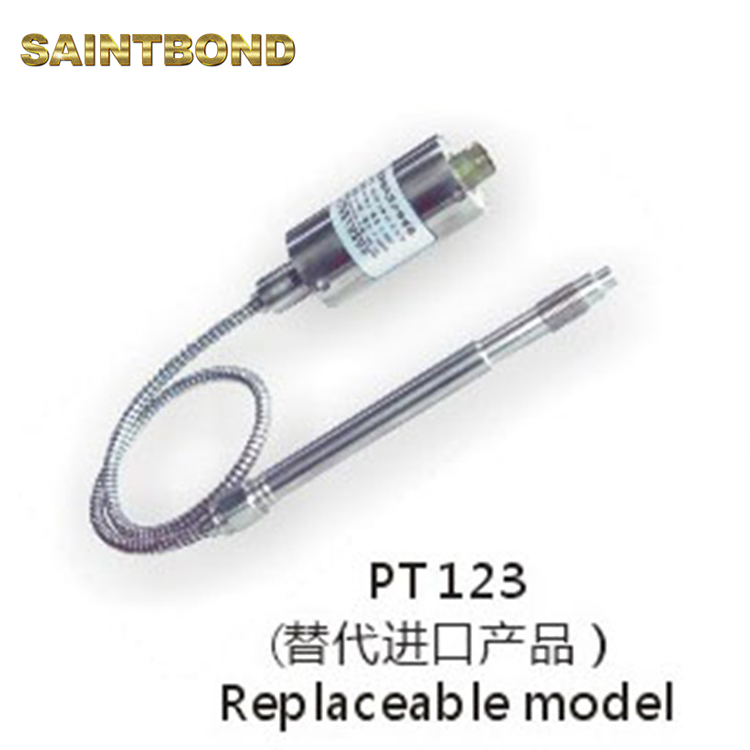

Professional Manufacture Low Cost High Temperature Melt Pressure Transducer

PARAMETERS:

Capacity Range:0-1-150MPa

Comprehensive Precision： 0.1%FS, 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS

Output Signal: 2mV/V; 2.5mV/V; 3.3mV/V; 4~20mA; 0~5V; 1~5V; 0~10V

Use Temp Range:-10~200℃-400℃

Excitation Voltage: Transducer =10V (6～12)V;Transmitter=24V (9～36)V;Transmitter=15~36V

Insulation Resistance: ≥2000MΩ,100VDC

Eletric Connection: 6 gilded pin / 5 pin

Thread connection:1/2-20UNF or Others

EXAMPLE: PT111 - 35M - 01 - C - G - 6 / 18 - J - W

PT1

11

35

M

01

C

G

6

18

J

W

11

Models

35

Capacity(Noted by number)

M

Pressure Measure ( P=Psi, B=Bar, M=MPa )

01

Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V )

C

Precision （%FS）(B=0.2, C=0.3,D=0.5, E=1.0 )

G

Thread Connection (F=M12×1,G=M14×1.5,H=1/2-20, L=M18×1.5,M=M22×1.5, N=M28×1.5, P=G3/4, Q=G3/8 )

6

Length of Rigid Stem( 2 =2.36“, 60mm,6=6”, 152mm)

18

Length of Flexible Tube(18=18“, 460mm,blank= none)

J

Thermcouple option (J, K, E, PT100 )

W

Electric connection(W=5pin, L=6pin )
