Zhejiang, China

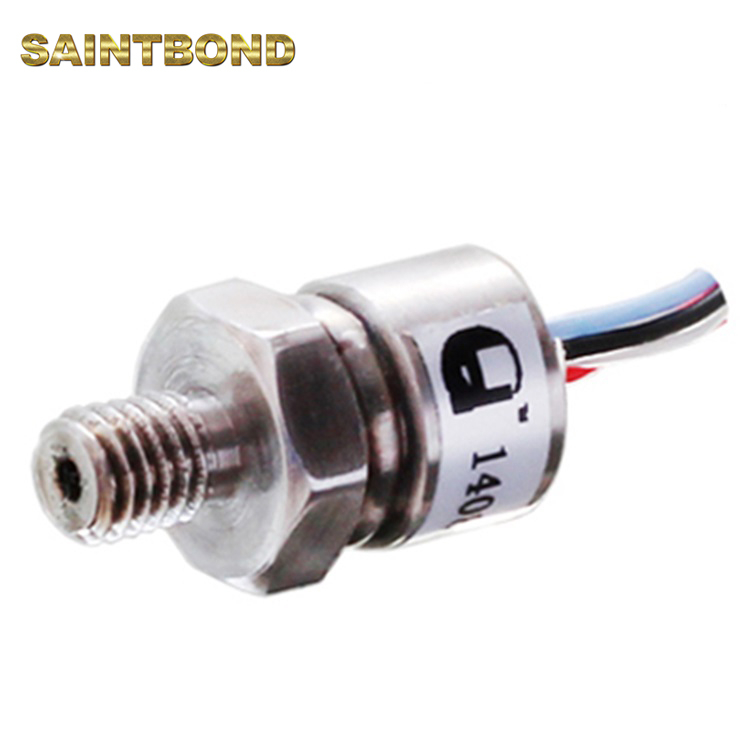

SAINTBOND Miniature Pressure Sensors
CYS Miniature Pressure Sensors
Miniature Pressure Sensors
Aluminum-alloy
Welcome
OEM&ODM
1pcs per type per capacity
20~45 DAYS
OEM & ODM Manufacture
Stable Performance High Accuracy Metal Miniature Pressure Sensors
Technical Data:
Pressure Medium | Gases or dilute fluids |
Measuring Ranges | 0~1.6…40Mpa |
Pressure References | Gauge |
Overload Pressure | 150%FS |
Burst Pressure | 200%FS |
Excitation | 10VDC |
Output Sensitivity | 1mv/V;1.5mv/V;2mv/V;5~10mv/V |
Zero Offset | ±2%FS |
Accuracy | ±0.5%FS;±0.2%FS |
Temperature Coefficient Of Zero Offset | ±0.05%FS/10℃ |
Temperature Coefficient Of Span | ±0.05%FS/10℃ |
Compensated Temperature Range | 0~80℃ |
Operating Temperature Range | -20~100℃ |
Input Resistance | 1000±3%Ω;3~5KΩ |
Output Resistance | 1000±3%Ω;3~5KΩ |
Mechanical Interface | M5;M6;M10×1; customizable |
Electrical Interface | 4 colored pvc flexible wires |
Machine Life | ≥5000000 pressure cycles |
Long-Term Stability | ≤±0.25%FS/year |
Features:
Minisize,high temperature;
Long-term stability。
Stable Performance High Accuracy Metal Miniature Pressure Sensors
Technical Data:
Pressure Medium | Gases or dilute fluids |
Measuring Ranges | 0~1.6…40Mpa |
Pressure References | Gauge |
Overload Pressure | 150%FS |
Burst Pressure | 200%FS |
Excitation | 10VDC |
Output Sensitivity | 1mv/V;1.5mv/V;2mv/V;5~10mv/V |
Zero Offset | ±2%FS |
Accuracy | ±0.5%FS;±0.2%FS |
Temperature Coefficient Of Zero Offset | ±0.05%FS/10℃ |
Temperature Coefficient Of Span | ±0.05%FS/10℃ |
Compensated Temperature Range | 0~80℃ |
Operating Temperature Range | -20~100℃ |
Input Resistance | 1000±3%Ω;3~5KΩ |
Output Resistance | 1000±3%Ω;3~5KΩ |
Mechanical Interface | M5;M6;M10×1; customizable |
Electrical Interface | 4 colored pvc flexible wires |
Machine Life | ≥5000000 pressure cycles |
Long-Term Stability | ≤±0.25%FS/year |
Features:
Minisize,high temperature;
Long-term stability。
