Zhejiang, China
SAINTBOND
MiNi096
Weigh the weight of the weigher
Convert electrical signal to the force signal
Analog Sensor

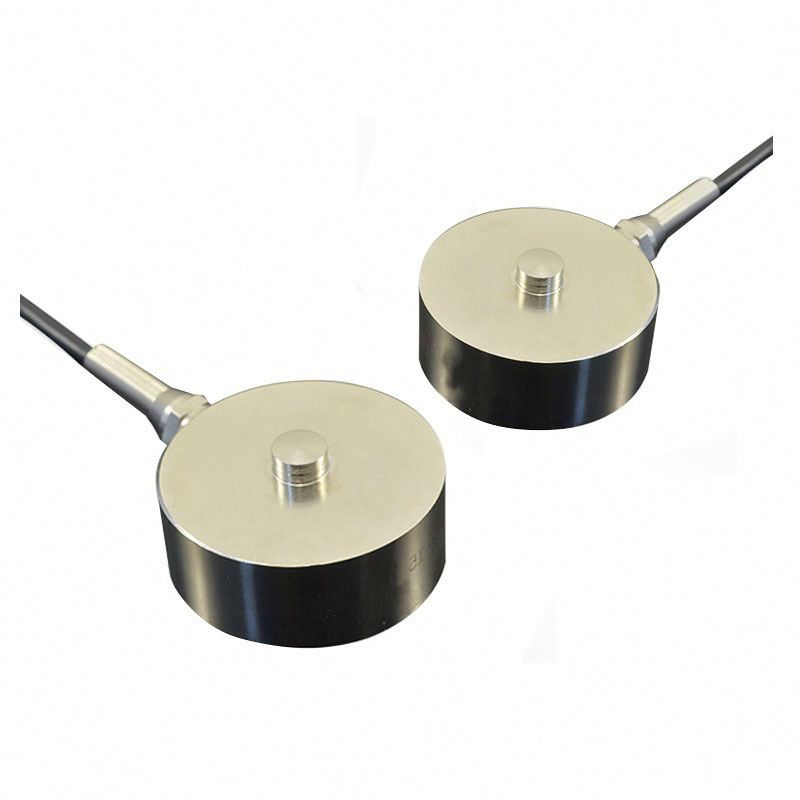

LZ-WL2 Miniature Compression Load Cells
Stainless Steel / Alloy Steel
1SET
1.0-2.0 mV/V
50~5000kg
truck scale, electronic scale and other weighing devices
-10~60℃
10~12V DC
≤±0.1 mV/V
Alloy steel or stainless steel
Subminiature Tension And Compression Dual Style Load Cell Miniature Stud Mount
Dimension:
Capacity(Ton) | A | L | L1 | M |
10kg | 25.4 | 37 | 13 | M5 |
100kg | 29 | 40 | 20 | M6 |
1000kg | 48 | 58 | 28 | M12 |
5000kg | 73 | 95 | 45 | M20 |
Features:
It is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
Capacity | 5kg~5t | Output Impedance | 700±2Ω |
Rated output | 1.0-2.0 mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ≤±0.5% F.S. | Recommended Excitation | 5~12VDC(10VDC) |
Hysteresis | 0.5 % F.S. | Excitation max | 15V |
Repeatability | 0.5 % F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ≤±0.3%F.S/30min | Operating Temp Range | -20~80℃ |
Temp Effect On Output | ≤±0.03%F.S/10℃ | Safe Load | 1.2 |
Temp Effect On Zero | ≤±0.03%F.S/10℃ | Ultimate Load Limit | 1.5 |
Input Impedance | 720±20Ω | Material | Stainless Steel |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
Subminiature Tension And Compression Dual Style Load Cell Miniature Stud Mount
Dimension:
Capacity(Ton) | A | L | L1 | M |
10kg | 25.4 | 37 | 13 | M5 |
100kg | 29 | 40 | 20 | M6 |
1000kg | 48 | 58 | 28 | M12 |
5000kg | 73 | 95 | 45 | M20 |
Features:
It is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
Capacity | 5kg~5t | Output Impedance | 700±2Ω |
Rated output | 1.0-2.0 mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ≤±0.5% F.S. | Recommended Excitation | 5~12VDC(10VDC) |
Hysteresis | 0.5 % F.S. | Excitation max | 15V |
Repeatability | 0.5 % F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ≤±0.3%F.S/30min | Operating Temp Range | -20~80℃ |
Temp Effect On Output | ≤±0.03%F.S/10℃ | Safe Load | 1.2 |
Temp Effect On Zero | ≤±0.03%F.S/10℃ | Ultimate Load Limit | 1.5 |
Input Impedance | 720±20Ω | Material | Stainless Steel |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
