Zhejiang, China
Saintbond
TAmplifier01
Weigh the weight of the weigher
Convert electrical signal to the force signal
0-10MV
Tension Sensor Amplifier
Alloy / Stainless Steel
Customizable
Good quality and low price
0.35x0.3x0.2cm
5~40Days
Welcome
1PCS
All over the world
Factory supply

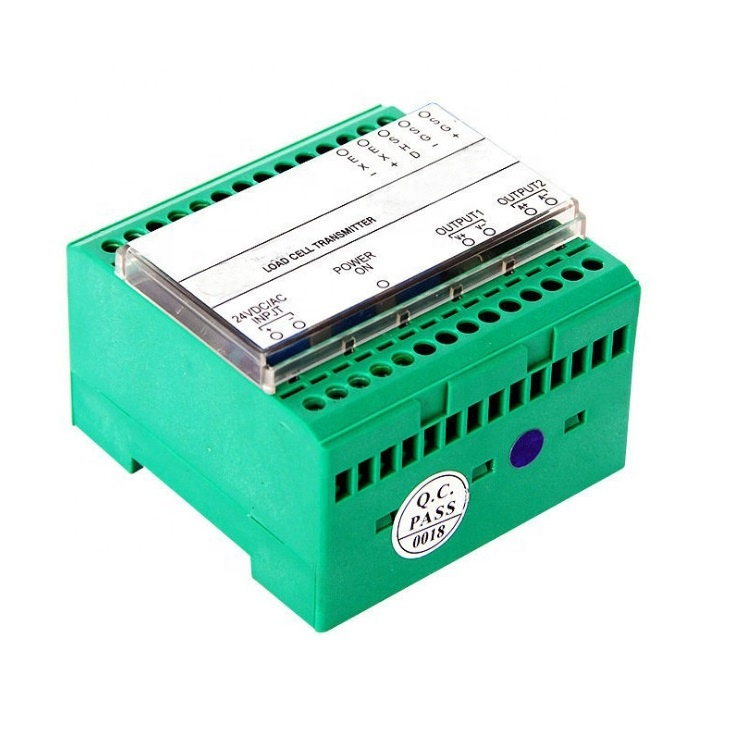

Tension Load Cell Measuring Amplifier & for web tension Sensor with factory price
TAmplifier01 advanced SMT production, small, high resolution, high speed, two levels of active filter function, low power consumption, super wide working voltage, multiple output forms to choose from, at the same time provide two lines of output optional, suitable for all kinds of resistance strain sensor output signal transmitting, zero calibration and gain are independent of each other. Widely used in industrial process control system of the tension signal transmitting for the standard of high precision analog signal output;
Working power supply: | DC10-33V | Operating Temp. Range: | -30~+70℃ |
Power consumption: | MAX 3W | Working humidity Range: | <90%R.H. |
Sensor Form: | Strain Tension Sensor | Sensor excitation power supply: | 10VDC±1%/100mA |
Accuracy: | 1/6500 | Linearity: | <0.005% |
Temperature coefficient | ±25ppm/°C | Output: | 5mvpp |
Dimension: | 75×75×55mm | Zero adjustable range: | 0~20mV |
Weight: | 125g | Range adjustable range: | 2-30mV |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
Tension Load Cell Measuring Amplifier & for web tension Sensor with factory price
TAmplifier01 advanced SMT production, small, high resolution, high speed, two levels of active filter function, low power consumption, super wide working voltage, multiple output forms to choose from, at the same time provide two lines of output optional, suitable for all kinds of resistance strain sensor output signal transmitting, zero calibration and gain are independent of each other. Widely used in industrial process control system of the tension signal transmitting for the standard of high precision analog signal output;
Working power supply: | DC10-33V | Operating Temp. Range: | -30~+70℃ |
Power consumption: | MAX 3W | Working humidity Range: | <90%R.H. |
Sensor Form: | Strain Tension Sensor | Sensor excitation power supply: | 10VDC±1%/100mA |
Accuracy: | 1/6500 | Linearity: | <0.005% |
Temperature coefficient | ±25ppm/°C | Output: | 5mvpp |
Dimension: | 75×75×55mm | Zero adjustable range: | 0~20mV |
Weight: | 125g | Range adjustable range: | 2-30mV |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
