Zhejiang, China
SAINTBOND
CS-SW1A
110V , 220V
LED LCD
Industrial Crane Scales
Welcome
OEM&ODM
1pcs per type per capacity
10~25 DAYS
OEM & ODM Manufacture
Weighing Scale
Stainless Steel
Top Selling Stainless Steel Wireless Used Industrial Crane Scales
Model | Division | Accuracy | Size (mm) | ||||
A | B | C | L | φ | |||
CS-SW1A-2t | 1 | III | 70 | 200 | 50 | 620 | 320 |
CS-SW1A-3t | 1 | III | 70 | 200 | 50 | 620 | 320 |
CS-SW1A-5t | 2 | III | 85 | 200 | 70 | 720 | 320 |
CS-SW1A-10t | 5 | III | 106 | 200 | 75 | 940 | 320 |
CS-SW1A-15t | 5 | III | 140 | 200 | 90 | 897 | 320 |
CS-SW1A-20t | 5 | III | 155 | 220 | 100 | 1050 | 320 |
CS-SW1A-30t | 10 | III | 150 | 220 | 120 | 1260 | 320 |
CS-SW1A-40t | 10 | III | 214 | 300 | 105 | 1263 | 380 |
CS-SW1A-50t | 20 | III | 214 | 300 | 105 | 1263 | 380 |
Wireless Features:
Type: | WI680 |
Product Standard: | GB/T11883-2002 |
Class Of Accuracy: | OIML Ⅲ |
Calibrate: | All use the keyboard to complete |
Power Supply Battery: | lithium battery |
Display: | LCD screen with backlight |
Reading Stability Time: | ≤5 seconds |
Overload Alarm: | Maximum scale |
Using Ambient Temperature: | -10℃~+50℃ |
Using Ambient Humidity: | 20℃,≤85% |
Maximum Range Of Wireless Transceiver: | 500~800 meters (open field) |
Radio Frequency: | 430~470MHz |
Main Technical Data:
Capacity: | 2/3/5/10/1520/30/50t | Overload Indication: | 100% F.S. + 9e | |
Zero Range: | 4% F.S. | Max. Safety Load: | 125% F.S. | |
Tare Range: | 20% F.S. | Ultimate Load: | 400% F.S. | |
Stable Time: | ≤10 seconds | Battery Life: | ≥70 hours | |
Adapter: | DC9V/1000mA | Operating Humidity: | ≤85% RH under 20℃ | |
Standard: | According to OIML class III | |||
Display: | 30mm (1.2'') 5digits LCD/LED | |||
Battery Type: | Fully sealed Lead-Acid battery, 6V/7Ah | |||
Remote Controller Distance: | ≤25m | |||
Battery Of Remote Controller: | UM-4 SIZE AAA,1.5Vx2 |
WI280 receive Indicator Wireless Features:
Interval Value:1/2/5/10/20/50/100
Display:192*64 dots display;6 status indicators(backlight)
Power: Lithium Battery, use 48 hours for one Charging
Environment temperature: Scale body -10℃~50℃;Instrument 0℃~40℃
Maximum wireless transceiver distance:>300m(open area)
Radio frequency:434MHz
Features:

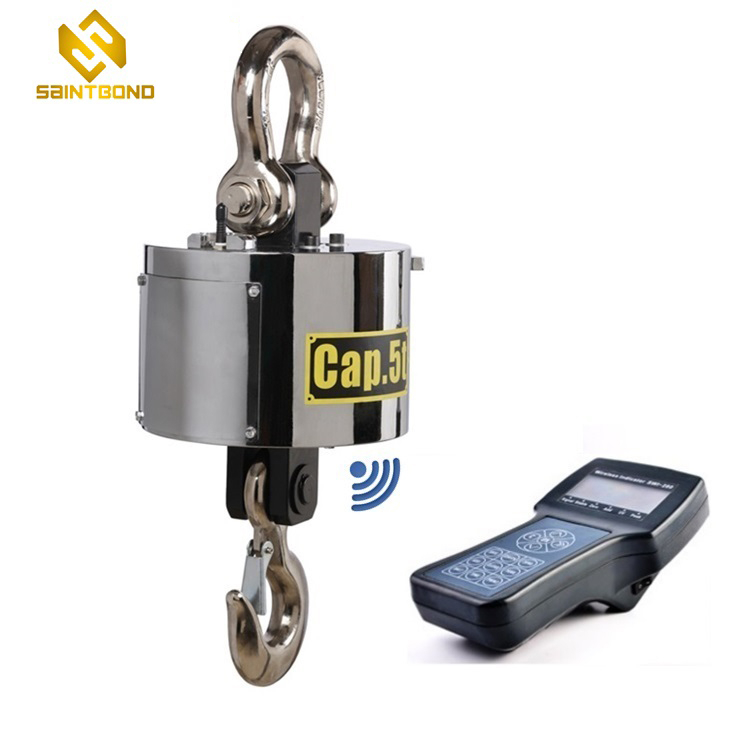

Wireless crane system / wireless crane scale CS-SW1A Multi-function operation: Tare;Zero;Auto zero
tracking;Total;Hold; Overload warning and record, operate through remote controller, etc functions.
User-friendly design: Steel housing scale body, high-tension shackle and hook; Weighing data save
protection in case of power off;keyboard calibration, easy to operate; Power saving mode, turn off
automatically after 1 hour with no operation;Gathering up to data records of 2000 weighing, records
can be sorted, searched and printed;Micro-printer in indicator; RS232 optional. The wireless crane
scale CS-SW1A with WI680 wireless indicator.
