SAINTBOND Melt Pressure Sensor
PT111 Melt Pressure Sensor
Melt Pressure Sensor
Aluminum-alloy
0-1-150MPa
≥2000MΩ,100VDC
Welcome
OEM&ODM
1pcs per type per capacity
20~45 DAYS
OEM & ODM Manufacture

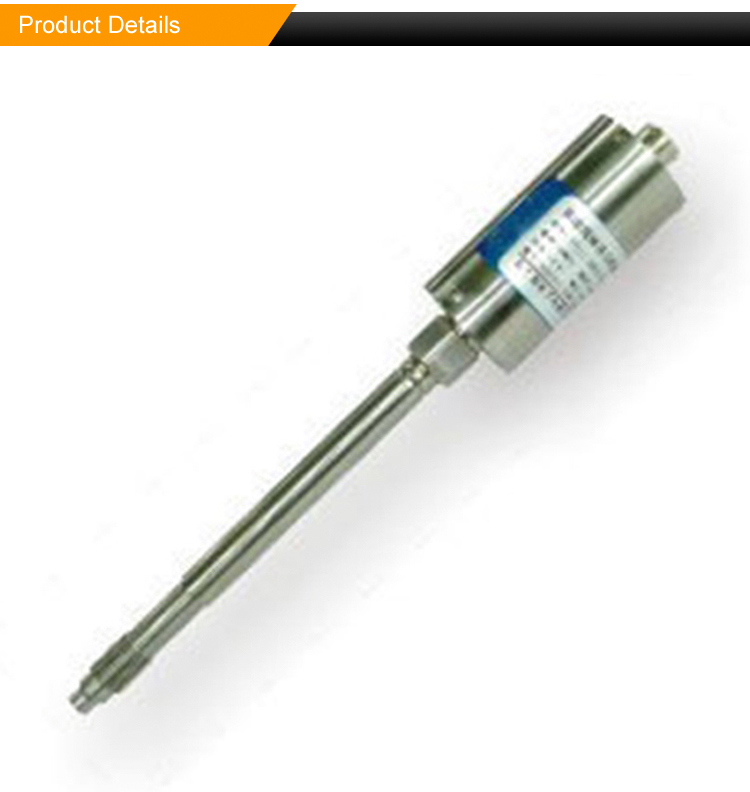

Wholesale 150MPa High Temperature Melt Pressure Sensor
PARAMETERS: |
Capacity Range:0-1-150MPa |
Comprehensive Precision： 0.1%FS, 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS |
Output Signal: 2mV/V; 2.5mV/V; 3.3mV/V; 4~20mA; 0~5V; 1~5V; 0~10V |
Use Temp Range:-10~200℃-400℃ |
Excitation Voltage: Transducer =10V (6～12)V;Transmitter=24V (9～36)V;Transmitter=15~36V |
Insulation Resistance: ≥2000MΩ,100VDC |
Eletric Connection: 6 gilded pin / 5 pin |
Thread connection:1/2-20UNF or Others |
EXAMPLE: PT111 - 35M - 01 - C - G - 6 / 18 - J - W | ||||||||||
PT1 | 11 | 35 | M | 01 | C | G | 6 | 18 | J | W |
11 | Models | |||||||||
35 | Capacity(Noted by number) | |||||||||
M | Pressure Measure ( P=Psi, B=Bar, M=MPa ) | |||||||||
01 | Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V ) | |||||||||
C | Precision （%FS）(B=0.2, C=0.3,D=0.5, E=1.0 ) | |||||||||
G | Thread Connection (F=M12×1,G=M14×1.5,H=1/2-20, L=M18×1.5,M=M22×1.5, N=M28×1.5, P=G3/4, Q=G3/8 ) | |||||||||
6 | Length of Rigid Stem( 2 =2.36“, 60mm,6=6”, 152mm) | |||||||||
18 | Length of Flexible Tube(18=18“, 460mm,blank= none) | |||||||||
J | Thermcouple option (J, K, E, PT100 ) | |||||||||
W | Electric connection(W=5pin, L=6pin ) | |||||||||
Features:
Low power supply (3～5VDC),low power consumption (≤1.5mA);
Integrated structure design safe conduct;
KJ10 quick fitting.
Wholesale 150MPa High Temperature Melt Pressure Sensor
PARAMETERS: |
Capacity Range:0-1-150MPa |
Comprehensive Precision： 0.1%FS, 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS |
Output Signal: 2mV/V; 2.5mV/V; 3.3mV/V; 4~20mA; 0~5V; 1~5V; 0~10V |
Use Temp Range:-10~200℃-400℃ |
Excitation Voltage: Transducer =10V (6～12)V;Transmitter=24V (9～36)V;Transmitter=15~36V |
Insulation Resistance: ≥2000MΩ,100VDC |
Eletric Connection: 6 gilded pin / 5 pin |
Thread connection:1/2-20UNF or Others |
EXAMPLE: PT111 - 35M - 01 - C - G - 6 / 18 - J - W | ||||||||||
PT1 | 11 | 35 | M | 01 | C | G | 6 | 18 | J | W |
11 | Models | |||||||||
35 | Capacity(Noted by number) | |||||||||
M | Pressure Measure ( P=Psi, B=Bar, M=MPa ) | |||||||||
01 | Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V ) | |||||||||
C | Precision （%FS）(B=0.2, C=0.3,D=0.5, E=1.0 ) | |||||||||
G | Thread Connection (F=M12×1,G=M14×1.5,H=1/2-20, L=M18×1.5,M=M22×1.5, N=M28×1.5, P=G3/4, Q=G3/8 ) | |||||||||
6 | Length of Rigid Stem( 2 =2.36“, 60mm,6=6”, 152mm) | |||||||||
18 | Length of Flexible Tube(18=18“, 460mm,blank= none) | |||||||||
J | Thermcouple option (J, K, E, PT100 ) | |||||||||
W | Electric connection(W=5pin, L=6pin ) | |||||||||
Features:
Low power supply (3～5VDC),low power consumption (≤1.5mA);
Integrated structure design safe conduct;
KJ10 quick fitting.
