Zhejiang, China
SAINTBOND
AS002C(4pcs)
110V , 220V
LED LCD
Portable Truck Axle scale
SAINTBOND
AC110~220V 50~60Hz
Aluminum-alloy
LCD/LCM
≤20 T
≤40 T (2 pads)
≤1000 T
120%
450*700*58mm(5000/10000/15000Kg)

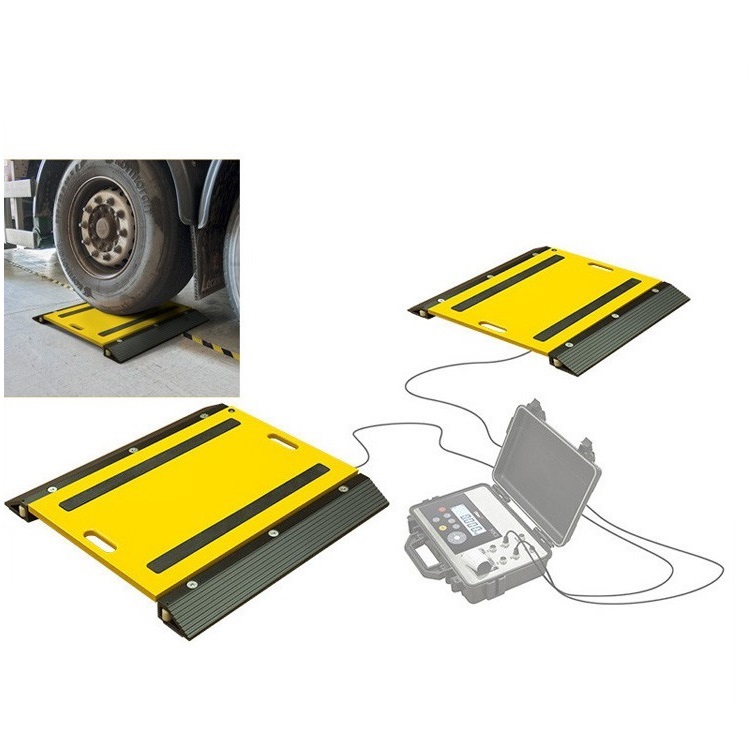

10T 20T 30T 40T Wheel Weigher Latest Style Dynamic Portable Truck Axle scale
Model | Size(A×B×C) (mm) | Capacity (Double Pads for One Axel) | Description(Each Pad) |
AS002C
| 350×350×35 | 1000/2000/3000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg |
400×500×56.5 | 3000/5000/6000/10000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | |
450×700×56.5 | 10000/20000/30000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg | |
500×900×56.5 | 20000/30000/40000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg |
Product Parameters | |
Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 |
Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
Excitation voltage(VDC): 9~15 | Net weight(kg): 45 |
Recommended voltage(V): 10 | Defend grade: IP66 |
MWI02 Multichannel Weighing Indicator
1.The Aluminum aviation housing, multi window display
2.1~4 channel input, axle load, wheel weight, gross weight and percentage weight
3.The built-in printer, optional rechargeable battery
4.The RS232/RS485 communication interface
Type | Picture | Description | Housing | Display |
MWI02 | | 1.Multichannel Weighing Indicator 2.Lead acid battery | Flight case | LCD |
FAQ:
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
10T 20T 30T 40T Wheel Weigher Latest Style Dynamic Portable Truck Axle scale
Model | Size(A×B×C) (mm) | Capacity (Double Pads for One Axel) | Description(Each Pad) |
AS002C
| 350×350×35 | 1000/2000/3000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg |
400×500×56.5 | 3000/5000/6000/10000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | |
450×700×56.5 | 10000/20000/30000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg | |
500×900×56.5 | 20000/30000/40000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg |
Product Parameters | |
Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 |
Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
Excitation voltage(VDC): 9~15 | Net weight(kg): 45 |
Recommended voltage(V): 10 | Defend grade: IP66 |
MWI02 Multichannel Weighing Indicator
1.The Aluminum aviation housing, multi window display
2.1~4 channel input, axle load, wheel weight, gross weight and percentage weight
3.The built-in printer, optional rechargeable battery
4.The RS232/RS485 communication interface
Type | Picture | Description | Housing | Display |
MWI02 | | 1.Multichannel Weighing Indicator 2.Lead acid battery | Flight case | LCD |
FAQ:
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
