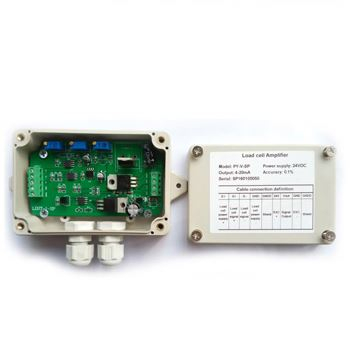

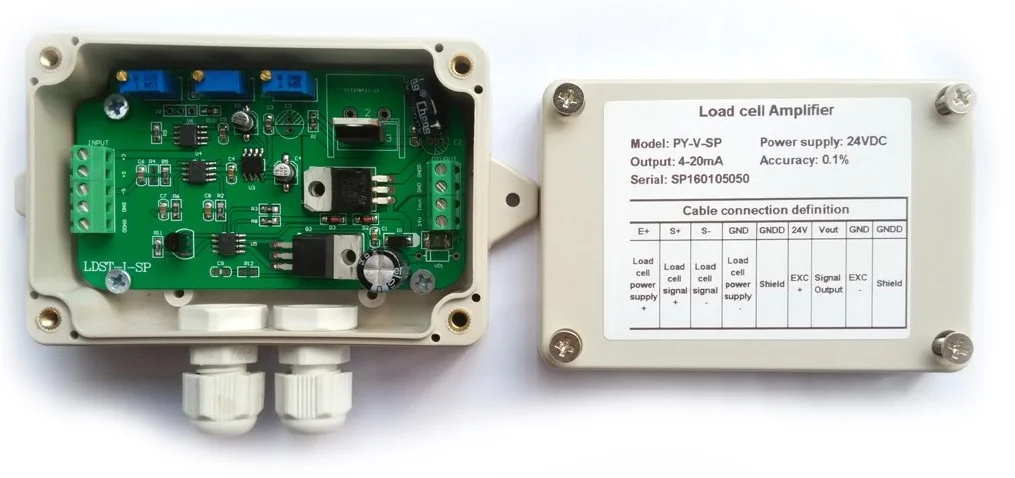

Amplifier 0-5Vdc 0-10Vdc for Load Cell Sensor

Availability:
Quantity:

PDF Export

  • PY-V-SP

  • Zhejiang, China

  • SAINTBOND

  • PY-V-SP

  • PRESSURE SENSOR

  • load cell

  • Good quality and low price

  • Welcome

  • OEM&ODM

  • 5~40Days

  • 30% advance payment, the rest payment before delivery

  • Carton

sb-xqy-2022_01

4-20mA 0-5V 0-10V load cell amplifier





Features:



  • Plastic housing, durable, cost-effective

  • Housing and wire joints are waterproof design, good sealing

  • High precision amplifier circuit, good stability

  • Anti-jamming performance

  • Wide sensitivity input range

  •  Power supply with reverse protection, surge protection, overcurrent protection

  • Sensor excitation voltage adjustable

  • Portable, small size, light weight, easy to install

  • Suitable for weighing, pull push force, torque, tension and other strain sensor

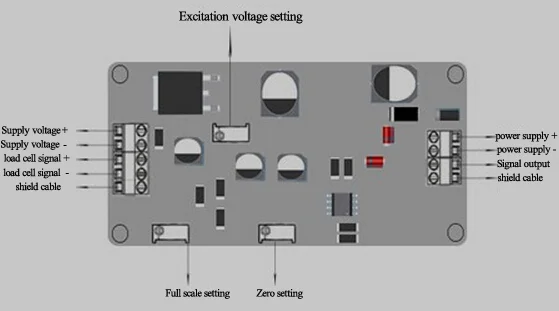

Wiring details








Parameter





Input Signal  mV
 Sensitivity range Standard: 1MV/V, 1.5MV/V, 2MV/V, 3MV/V
Optional: 0.5MV/V, 4MV/V, 5MV/V ,6MV/V
Load cell Excitation Voltage  5~15VDC(Adjustable)
Operating Temperature  -20~60°C
Operating Humidity <90%RH
Protection grade  IP65
 Installation Housing fixing
Housing material ABS
Working Excitation voltage Standard: 12VDC, Optional: 24VDC
Output signal

Current:4~20mA, 0~10mA, 0~20mA

Voltage:0~5V, 0~10V, 1~5V, &plusmn;5V, &plusmn;10V

Please notify us which output you want when place order
Customized output for voltage output is supported

Accuracy

Current output type &ge; 0.05%F.S

Voltage output type &ge; 0.1%F.S

 Load cell connection At most 4 units of load cell in 350 ohm





sb-xqy-2022_03

Amplifier 0-5Vdc 0-10Vdc for Load Cell Sensor



Product Name Amplifier 0-5Vdc 0-10Vdc for Load Cell Sensor
Features Good quality and low price
Service OEM&ODM
Custom Design Welcome
Sample Lead Time 5~40Days
Payment Terms 30% advance payment, the rest payment before delivery
Market all over the world
Form of sale Factory supply

sb-xqy-2022_05 sb-xqy-2022_06sb-xqy-2022_07sb-xqy-2022_08

Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.



Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.



Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer&rsquo;s brand logo.



Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.



Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.



Q6:What&rsquo;s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.



Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
