Availability: | |
---|---|
Quantity: | |
PDF Export | |
Zhejiang, China
SAINTBOND
JT-D
Personal Scale
110V/220-240V AC
LCD/LED display
300g
±1mg
electronic balance gram
Direct sales and sales agents
Weight Function
Alluminum alloy cas base
All over the world
Good quality
3-15 Days
High Precision
30% advance payment
g/mg/ct/ozt

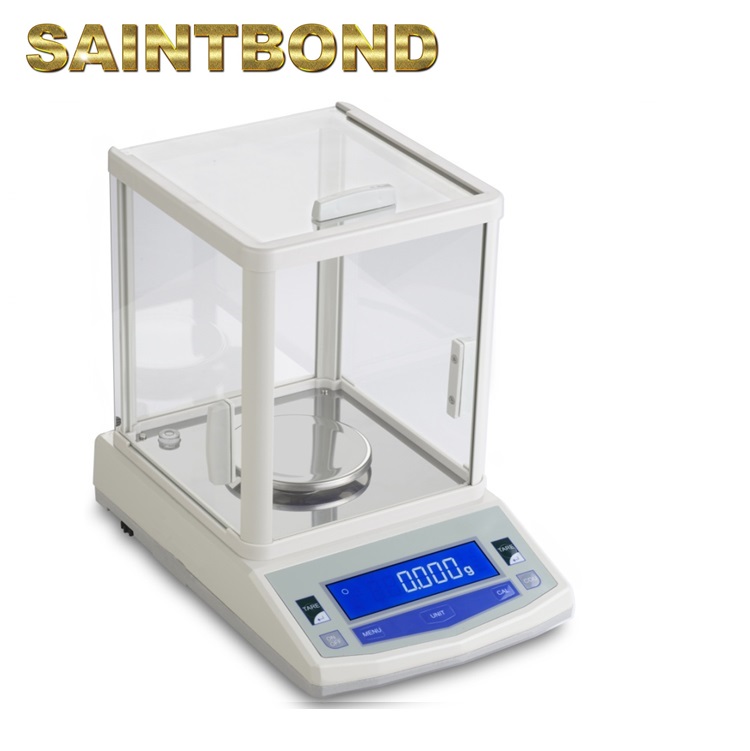

Balance lcd electronic balance digital electronic balance gram 300g

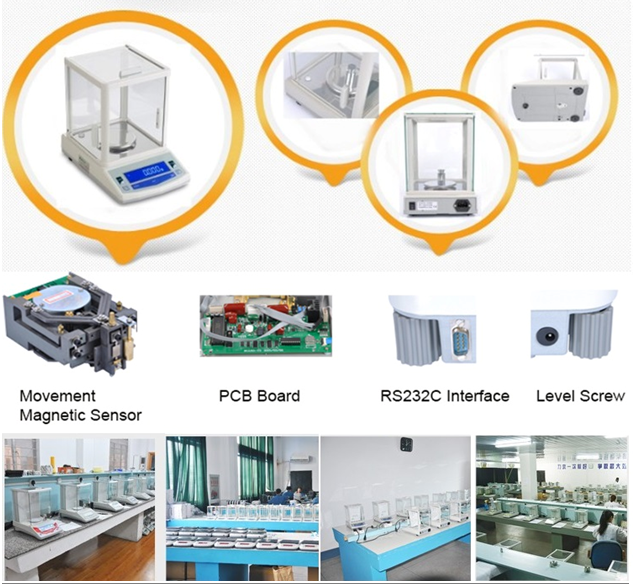

Product Description:
High Precision loadcell, compact design;
Aluminum Alloy die cast base and mains;
Stainless Steel Platter;
Super Bright LCD display with backlight / green LED display for JTB series;
Clear glass windshield supplied as standard;
Height adjustable feet;
Full Capacity subtraction, Overload Protection;
Multi Weighing unit conversation g/mg/ct/ozt;
Below Balance hanger supplied as standard;
Stabilization time 2 seconds;
Checking Weighing, Piece counting function;
Certified calibration weight supplied as standard;
CE approval;
Technical Parameter:
JT-D series Electronic Balance (1mg)
Model No | JT1003D | JT2003D | JT3003D |
Capacity | 0-100g | 0-200g | 0-300g |
Readability | 1mg | ||
Repeatability | ±1mg | ±3mg | |
Linearity | ±1mg | ±3mg | |
Pan Size | Φ100mm | ||
Output Interface | RS232 | ||
Dimensions(L*W*H) | 290mmx185mmx270mm | ||
Net Weight | 3500g | ||
Power Supply | 110V/220-240V AC |
Balance lcd electronic balance digital electronic balance gram 300g
Product Description:
High Precision loadcell, compact design;
Aluminum Alloy die cast base and mains;
Stainless Steel Platter;
Super Bright LCD display with backlight / green LED display for JTB series;
Clear glass windshield supplied as standard;
Height adjustable feet;
Full Capacity subtraction, Overload Protection;
Multi Weighing unit conversation g/mg/ct/ozt;
Below Balance hanger supplied as standard;
Stabilization time 2 seconds;
Checking Weighing, Piece counting function;
Certified calibration weight supplied as standard;
CE approval;
Technical Parameter:
JT-D series Electronic Balance (1mg)
Model No | JT1003D | JT2003D | JT3003D |
Capacity | 0-100g | 0-200g | 0-300g |
Readability | 1mg | ||
Repeatability | ±1mg | ±3mg | |
Linearity | ±1mg | ±3mg | |
Pan Size | Φ100mm | ||
Output Interface | RS232 | ||
Dimensions(L*W*H) | 290mmx185mmx270mm | ||
Net Weight | 3500g | ||
Power Supply | 110V/220-240V AC |
