Alloy Steel,Stainless Steel,Carbon Steel, High strength steel, Alloy Steel,Stainless Steel,Carbon Steel, High strength steel
GB,JIS,ANSI, ISO
D, d-shape
Black powder coating,Galvanized,Polished
Zhejiang, China
SAINTBOND
G215
shackle pin
Direct selling, sales agency, distribution and network sales
Lifting Fittings
All over the world
Good quality
3-15 Days
Yellow,sliver,red,green or others
4 times,5 times,6 times and 8Times

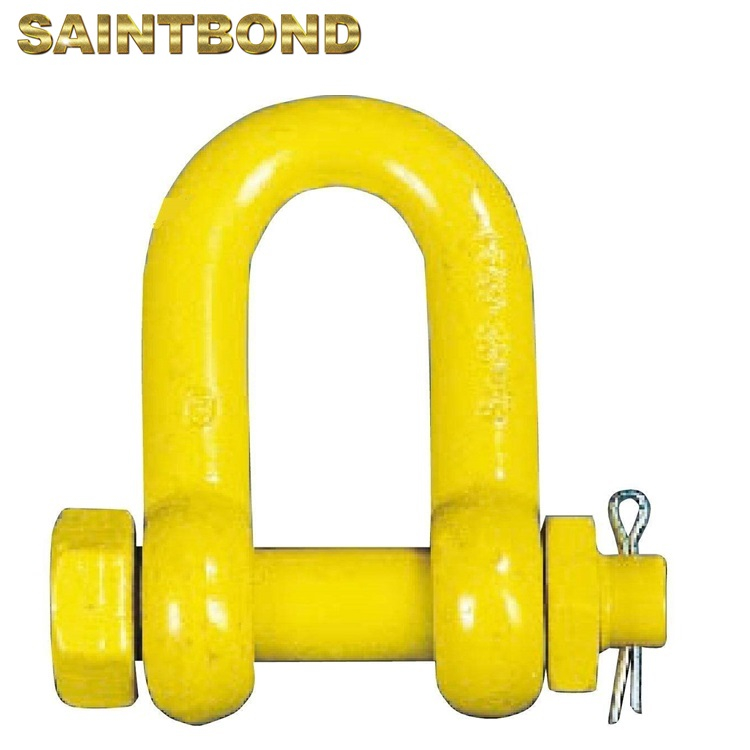

Bolt Type chain lifting shackles crane shackles pin
Forged - quenched and tempered, with alloy pin.
Working Load Limit permanently shown on every shackle.
Hot Dip galvanized or self-colored.
Fatigue rated.
Shackles are quenched and tempered and can meet DNV impact requirements of 42 joules at -20 degress C.
Round pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class1, except for those provisions required of the contractor
