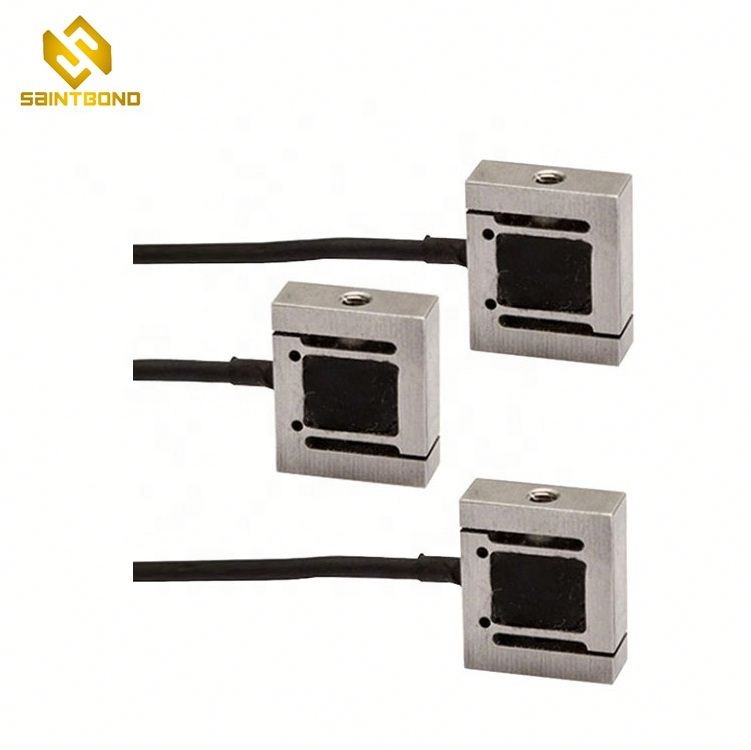

Easy Installation Small Size S-type Load Cell 10kg 20kg Pull And Push Force Sensor 500N with Displayer





Dimension:



Cap.	A	B	C	D	E	M
0-5N-30N	16	19.1	5	6.7	17	M3 Depth 3 mm
0-50N	16	19.1	6	7.5	17	M4 Depth 3 mm

Note:

1:Screws should not be screwed too deep and shall not exceed 4 millimeters. You should not touch the middle part of the sensor so as not to affect the measurement result.

When the

2:Sensor is installed, the two sides of the cover plate can not be contacted with the middle cylinder, so as to avoid measuring the result



Capacity	A	B	C	M
0-100N-500N	16	19.1	6	M4 Depth 3 mm
0-200N-2KN	26	40	12	M8 Depth 8 mm

Note: screws must not be screwed too deep when they are installed. You should not touch the middle part of the sensor so as not to affect the measurement result.

Description:

Ultra small installation size, width of only 5 mm, height of 19.1 mm; high speed dynamic response output, high accuracy; measuring force: internal thread tension or compression direction. Widely used in automatic force detection, typical applications: key detection.

Technical Data:

Capacity	0-5N~2000N	Material	Stainless Steel
Rated output	2.0 ±10%  mV/V	Output Impedance	350±3Ω
Non-linearity	0.05 % F.S.	Insulation	>5000MΩ/10VDC
Hysteresis	0.05 % F.S.	Recommended Excitation	2.5-5V
Repeatability	0.05 % F.S.	Excitation max	10V
Creep(30min)	0.05 % F.S.	Compensated Temp Range	-10~60℃
Temp Effect On Output	0.1 % F.S./ 10℃	Operating Temp Range	-20~80℃
Temp Effect On Zero	0.1 % F.S./ 10℃	Safe Load	1.2
Protection Class	IP 65	Ultimate Load Limit	1.5
Input Impedance	350±15Ω	Cable Length	∅2-3 x 3m
Wire Connection	Ex +: Red; Ex -Black;  Sig +: Green;  Sig -: White (Pressure is positive, pulling is negative);



Easy installation small size s-type load cell 10kg 20kg pull and push force sensor 500N with displayer

Product Name	Easy installation small size s-type load cell 10kg 20kg pull and push force sensor 500N with displayer
Features	Good quality and low price
Service	OEM&ODM
Custom Design	Welcome
Sample Lead Time	5~40Days
Payment Terms	30% advance payment, the rest payment before delivery
Market	all over the world
Form of sale	Factory supply



Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.

Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.

Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.

Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.

Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.

Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.

Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
