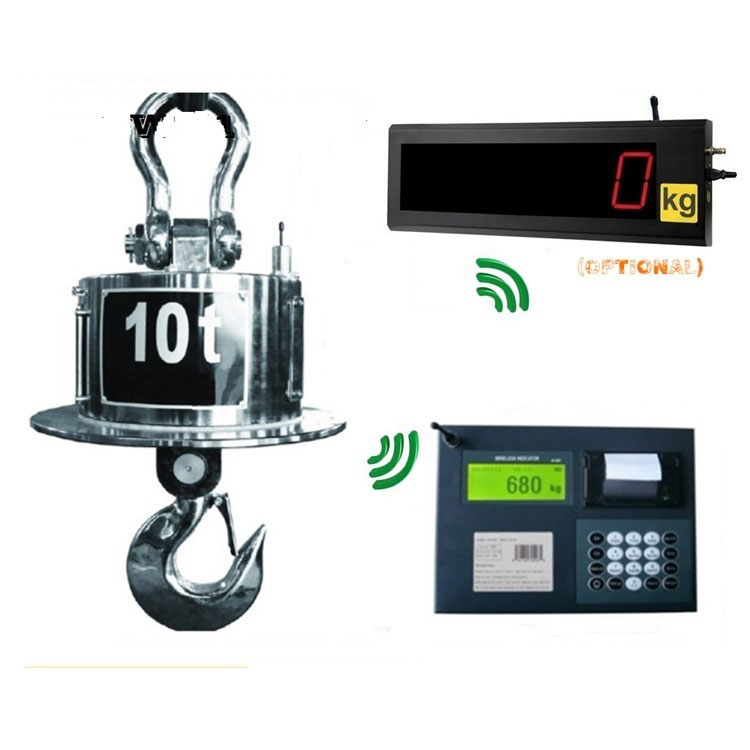

SAINTBOND Heavy Duty Crane Scale
CS-SW1HB Heavy Duty Crane Scale
110V , 220V or according to customer's requirement
LED LCD
Heavy Duty Crane Scale
Stainless steel
Welcome
OEM&ODM
1pcs per type per capacity
10~25 DAYS
OEM & ODM Manufacture
Weighing Scale
Factory Customize 6 LCD Display Electronic Weighing Scales/Heavy Duty Crane Scale
Technical specification:
Accuracy Degree: | According to international OIML Ⅲ degree |
A/D Conversion Speed: | ≥50 times/second |
Maximum Inner Code Conversion Rate: | 1million code/time |
Load Cell Bridge Power Supply: | DC5V |
Display: | 6 LCD display, 6 status indicating denotation (backlight at night) |
Power Supply: | A/D transmitting end 6V/2.8AH nickel battery group, working 50 hours after one charge, handle indicating end 4.8V/2.8AH nickel battery group, working 40hours after one charge |
Temperature Of Operating Environment: | Scale body -10℃-50℃; indicator 0℃-40℃ |
Max. Receiving And Launching Distance: | 500-800m (broad field) |
Frequency: | 450MHz |
Specification:
Model | Max Cap | Min. Weigh | Division | Total Display Counts |
(Kg) | (Kg) | (Kg) | (N) | |
CS-DHC-1 | 1000 | 10 | 0.5 | 2000 |
CS-DHC-2 | 2000 | 20 | 0.5 | 2000 |
CS-DHC-3 | 3000 | 20 | 1 | 3000 |
CS-DHC-5 | 5000 | 40 | 1 | 2500 |
CS-DHC-10 | 10000 | 100 | 2 | 2000 |
CS-DHC-15 | 15000 | 100 | 2 | 2000 |
Min Distance Between Scale And High Temperature:
1000℃ | 1200℃ | 1400℃ | 1600℃ |
1.6m | 1.8m | 2m | 2.2m |
Features:
The high temperature crane scale body with Hook & Shackle with Heat Shield plate suitable for up to 1600 deg℃ with NiCd /NiMH 12V battery for 40 hours backup, wireless transmitter for distance up to 200m, Battery charger unit with Spare battery
The high temperature crane scale CS-SWH2 Special design:Used under high temperature environment. Especially in casting industry. Multi-function:Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function. User-friendly design:The high temperature crane scale LCD with backlight, easy to operate with micro-printer. Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.
Factory Customize 6 LCD Display Electronic Weighing Scales/Heavy Duty Crane Scale
Technical specification:
Accuracy Degree: | According to international OIML Ⅲ degree |
A/D Conversion Speed: | ≥50 times/second |
Maximum Inner Code Conversion Rate: | 1million code/time |
Load Cell Bridge Power Supply: | DC5V |
Display: | 6 LCD display, 6 status indicating denotation (backlight at night) |
Power Supply: | A/D transmitting end 6V/2.8AH nickel battery group, working 50 hours after one charge, handle indicating end 4.8V/2.8AH nickel battery group, working 40hours after one charge |
Temperature Of Operating Environment: | Scale body -10℃-50℃; indicator 0℃-40℃ |
Max. Receiving And Launching Distance: | 500-800m (broad field) |
Frequency: | 450MHz |
Specification:
Model | Max Cap | Min. Weigh | Division | Total Display Counts |
(Kg) | (Kg) | (Kg) | (N) | |
CS-DHC-1 | 1000 | 10 | 0.5 | 2000 |
CS-DHC-2 | 2000 | 20 | 0.5 | 2000 |
CS-DHC-3 | 3000 | 20 | 1 | 3000 |
CS-DHC-5 | 5000 | 40 | 1 | 2500 |
CS-DHC-10 | 10000 | 100 | 2 | 2000 |
CS-DHC-15 | 15000 | 100 | 2 | 2000 |
Min Distance Between Scale And High Temperature:
1000℃ | 1200℃ | 1400℃ | 1600℃ |
1.6m | 1.8m | 2m | 2.2m |
Features:
The high temperature crane scale body with Hook & Shackle with Heat Shield plate suitable for up to 1600 deg℃ with NiCd /NiMH 12V battery for 40 hours backup, wireless transmitter for distance up to 200m, Battery charger unit with Spare battery
The high temperature crane scale CS-SWH2 Special design:Used under high temperature environment. Especially in casting industry. Multi-function:Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function. User-friendly design:The high temperature crane scale LCD with backlight, easy to operate with micro-printer. Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.
