Zhejiang, China
SAINTBOND Load cell feet
ZEMIC BJ-8-202 Load cell feet
Other, Weighing Scale
Other
Other
Load cell feet
Load cell feet
Stainless Steel
Welcome
OEM&ODM
10~25 DAYS
OEM & ODM Manufacture

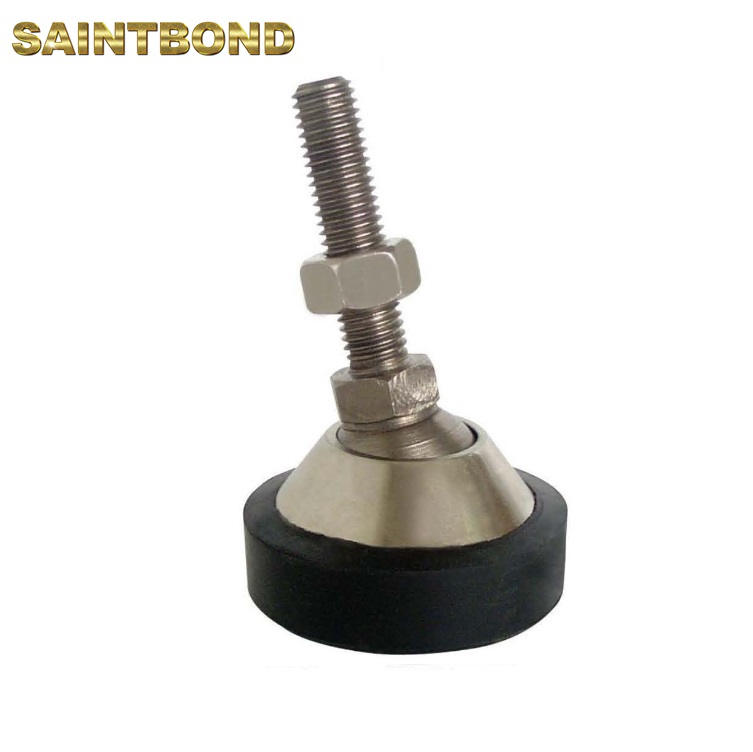

Height adjustable stainless steel threaded H8C B8D load cell feet
Available models:
Model | Capacity | Full Article Description | Part Number |
BJ-8-202 | 0.1t-2t | BJ-8-202-0.1/2t | 2080110 |
2.5-5t | BJ-8-202-2.5/5t | 2080120 | |
10t | BJ-8-202-10t | 2080124 |
Detailed Specifications BJ-8-202:
Capacity | 0.1t-2t | 2.5t-5t | 10t |
Max. Vertical Force (down) | 30kN | 70kN | 100kN |
Max. horizontal movement | +1/-1mm | +1/-1mm | +1/-1mm |
Type | Capacity | ΦD | H | H1 | M |
BJ-8-202 | 0.1t-2t | 60 | 92 | 50 | M12×1.75 |
| 2.5-5t | 80 | 105 | 50 | M20×2.5 |
| 10t | 86 | 107 | 50 | M24×2.0 |
Note: Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever.
Short Description:
Height adjustable stainless steel foot for H8C and B8D;
Easy installation;
Stainless steel;
Can be used with Load Cell models: H8C and B8D;
Height adjustable stainless steel threaded H8C B8D load cell feet
Available models:
Model | Capacity | Full Article Description | Part Number |
BJ-8-202 | 0.1t-2t | BJ-8-202-0.1/2t | 2080110 |
2.5-5t | BJ-8-202-2.5/5t | 2080120 | |
10t | BJ-8-202-10t | 2080124 |
Detailed Specifications BJ-8-202:
Capacity | 0.1t-2t | 2.5t-5t | 10t |
Max. Vertical Force (down) | 30kN | 70kN | 100kN |
Max. horizontal movement | +1/-1mm | +1/-1mm | +1/-1mm |
Type | Capacity | ΦD | H | H1 | M |
BJ-8-202 | 0.1t-2t | 60 | 92 | 50 | M12×1.75 |
| 2.5-5t | 80 | 105 | 50 | M20×2.5 |
| 10t | 86 | 107 | 50 | M24×2.0 |
Note: Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever.
Short Description:
Height adjustable stainless steel foot for H8C and B8D;
Easy installation;
Stainless steel;
Can be used with Load Cell models: H8C and B8D;
