Zhejiang, China
SAINTBOND
Mini093
Weigh the weight of the weigher
Convert electrical signal to the force signal
2.0mV/V
high precision 50kg load cell 40 kg gauge 1kgd cell
Aluminum
1SET
Good quality and low price
OEM&ODM
Welcome
5~40Days
30% advance payment, the rest payment before delivery
Carton,0.35x0.3x0.2cm

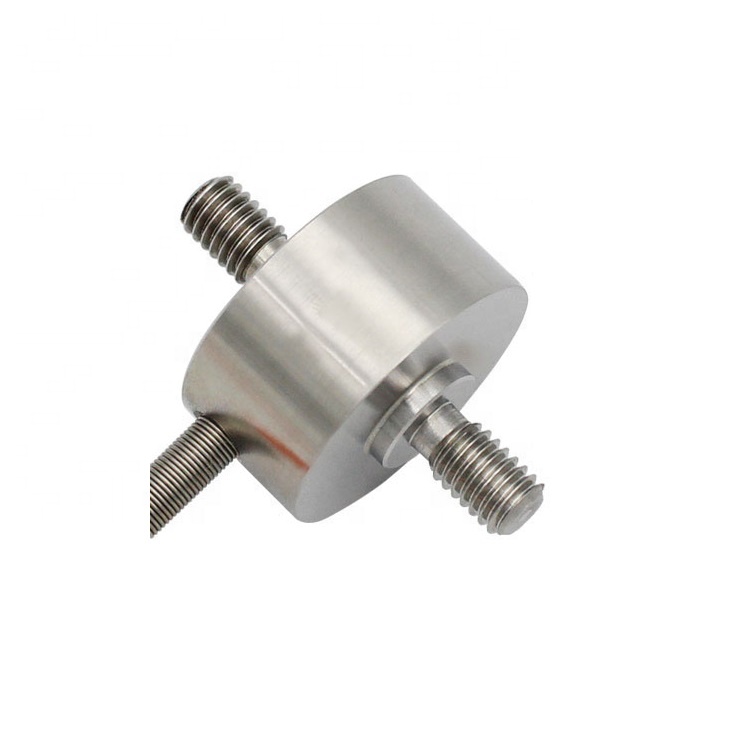

high precision 50kg load cell 40 kg gauge 1kgd cell
Capacity: 50/100/200/500KG
It is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
Capacity | 0-50/100/200/500KG | Material | Stainless Steel |
Rated output | 1.5-2.0 mV/V | Output Impedance | 700±3Ω |
Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.5 % F.S. | Recommended Excitation | 5~10V |
Repeatability | 0.5 % F.S. | Excitation max | 15V |
Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.2 |
Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
Input Impedance | 750±5Ω | Cable Length | ∅4 x 3m |
Wire Connection | Ex +: (Red) ; Ex -: (Black) ; Sig +: (Green ); Sig -: (White) ; | ||
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
high precision 50kg load cell 40 kg gauge 1kgd cell
Capacity: 50/100/200/500KG
It is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
Capacity | 0-50/100/200/500KG | Material | Stainless Steel |
Rated output | 1.5-2.0 mV/V | Output Impedance | 700±3Ω |
Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.5 % F.S. | Recommended Excitation | 5~10V |
Repeatability | 0.5 % F.S. | Excitation max | 15V |
Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.2 |
Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
Input Impedance | 750±5Ω | Cable Length | ∅4 x 3m |
Wire Connection | Ex +: (Red) ; Ex -: (Black) ; Sig +: (Green ); Sig -: (White) ; | ||
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
