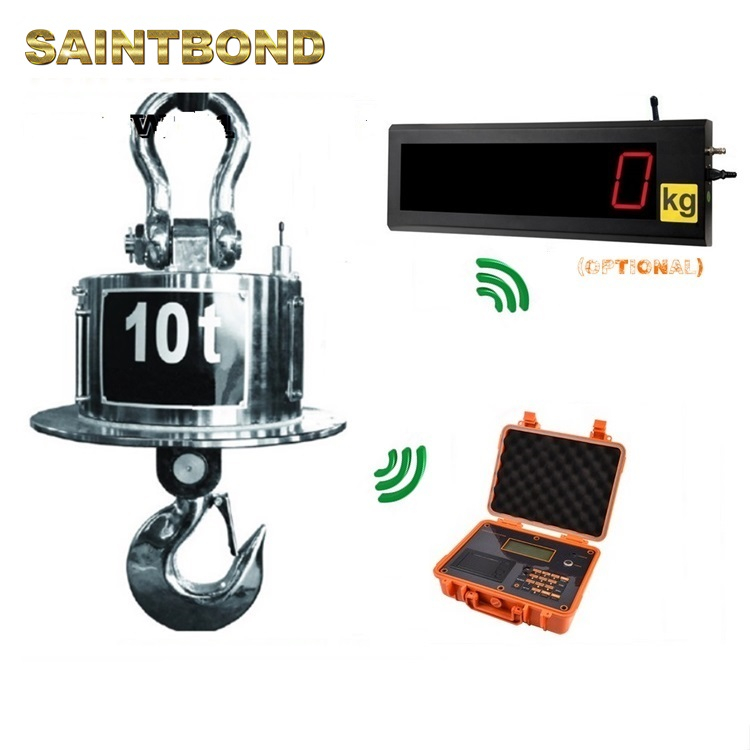

SAINTBOND Wireless Industrial Crane Scale
CS-SW1HC Wireless Industrial Crane Scale
CRANE SCALE
DC5V
LED LCD
60Ton per weighing pad
0.1kg
Wireless Industrial Crane Scale
Stainless steel
Welcome
OEM&ODM
1pcs per type per capacity
10~25 DAYS
OEM & ODM Manufacture
Weighing Scale
High Quality LCD Display High Temperature Proof Wireless Industrial Crane Scale
Technical specification:
Accuracy Degree: | According to international OIML Ⅲ degree |
A/D Conversion Speed: | ≥50 times/second |
Maximum Inner Code Conversion Rate: | 1million code/time |
Load Cell Bridge Power Supply: | DC5V |
Display: | 6 LCD display, 6 status indicating denotation (backlight at night) |
Power Supply: | A/D transmitting end 6V/2.8AH nickel battery group, working 50 hours after one charge, handle indicating end 4.8V/2.8AH nickel battery group, working 40hours after one charge |
Temperature Of Operating Environment: | Scale body -10℃-50℃; indicator 0℃-40℃ |
Max. Receiving And Launching Distance: | 500-800m (broad field) |
Frequency: | 450MHz |
Description：
Cap.(T) | D(Kg) | N | Load Cell | N.W.(Kg) | Body Long. (mm) |
2t | 1 | 2000 | Tension Alloy Steel | 24 | 560 |
3t | 1 | 2000 | 24 | 560 | |
5t | 2 | 2500 | 37 | 718 | |
10t | 5 | 2000 | 46 | 850 | |
15t | 5 | 3000 | 71 | 980 | |
20t | 10 | 2000 | 76 | 1030 | |
30t | 10 | 3000 | 95 | 1350 | |
50t | 20 | 2500 | 323 | 1600 |
Min Distance Between Scale And High Temperature:
1000℃ | 1200℃ | 1400℃ | 1600℃ |
1.6m | 1.8m | 2m | 2.2m |
Features:
The high temperature crane scale body with Hook & Shackle with Heat Shield plate suitable for up to 1600 deg℃ with NiCd /NiMH 12V battery for 40 hours backup, wireless transmitter for distance up to 200m, Battery charger unit with Spare battery
The high temperature crane scale CS-SW1HC Special design:Used under high temperature environment. Especially in casting industry. Multi-function:Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function. User-friendly design:The high temperature crane scale LCD with backlight, easy to operate with micro-printer. Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.
High Quality LCD Display High Temperature Proof Wireless Industrial Crane Scale
Technical specification:
Accuracy Degree: | According to international OIML Ⅲ degree |
A/D Conversion Speed: | ≥50 times/second |
Maximum Inner Code Conversion Rate: | 1million code/time |
Load Cell Bridge Power Supply: | DC5V |
Display: | 6 LCD display, 6 status indicating denotation (backlight at night) |
Power Supply: | A/D transmitting end 6V/2.8AH nickel battery group, working 50 hours after one charge, handle indicating end 4.8V/2.8AH nickel battery group, working 40hours after one charge |
Temperature Of Operating Environment: | Scale body -10℃-50℃; indicator 0℃-40℃ |
Max. Receiving And Launching Distance: | 500-800m (broad field) |
Frequency: | 450MHz |
Description：
Cap.(T) | D(Kg) | N | Load Cell | N.W.(Kg) | Body Long. (mm) |
2t | 1 | 2000 | Tension Alloy Steel | 24 | 560 |
3t | 1 | 2000 | 24 | 560 | |
5t | 2 | 2500 | 37 | 718 | |
10t | 5 | 2000 | 46 | 850 | |
15t | 5 | 3000 | 71 | 980 | |
20t | 10 | 2000 | 76 | 1030 | |
30t | 10 | 3000 | 95 | 1350 | |
50t | 20 | 2500 | 323 | 1600 |
Min Distance Between Scale And High Temperature:
1000℃ | 1200℃ | 1400℃ | 1600℃ |
1.6m | 1.8m | 2m | 2.2m |
Features:
The high temperature crane scale body with Hook & Shackle with Heat Shield plate suitable for up to 1600 deg℃ with NiCd /NiMH 12V battery for 40 hours backup, wireless transmitter for distance up to 200m, Battery charger unit with Spare battery
The high temperature crane scale CS-SW1HC Special design:Used under high temperature environment. Especially in casting industry. Multi-function:Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function. User-friendly design:The high temperature crane scale LCD with backlight, easy to operate with micro-printer. Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.
