Availability: | |
---|---|
Quantity: | |
PDF Export | |
New
Factory
PVC
600 - 3000
Single-screw
none
Zhejiang, China
Saintbond
380
1 Year
Online support, Engineers available to service machinery overseas
High Productivity
Online support
none
Factory
Reconditioned plastic machines
Factory supply
12mm
Optional
30% advance payment, the rest payment before delivery
Optional
PLC
All over the world
± 0.1%~ 0.3%
140 mm
25:1

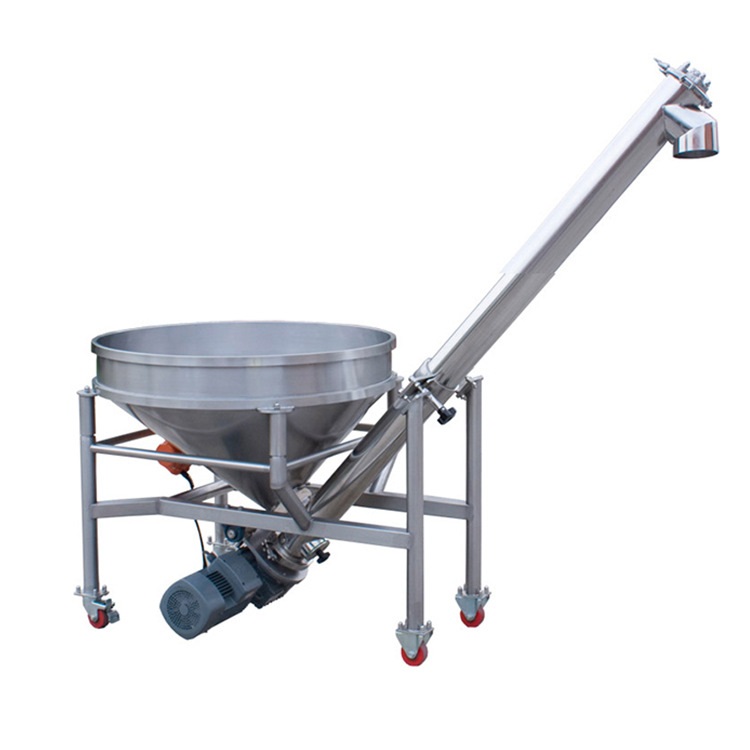

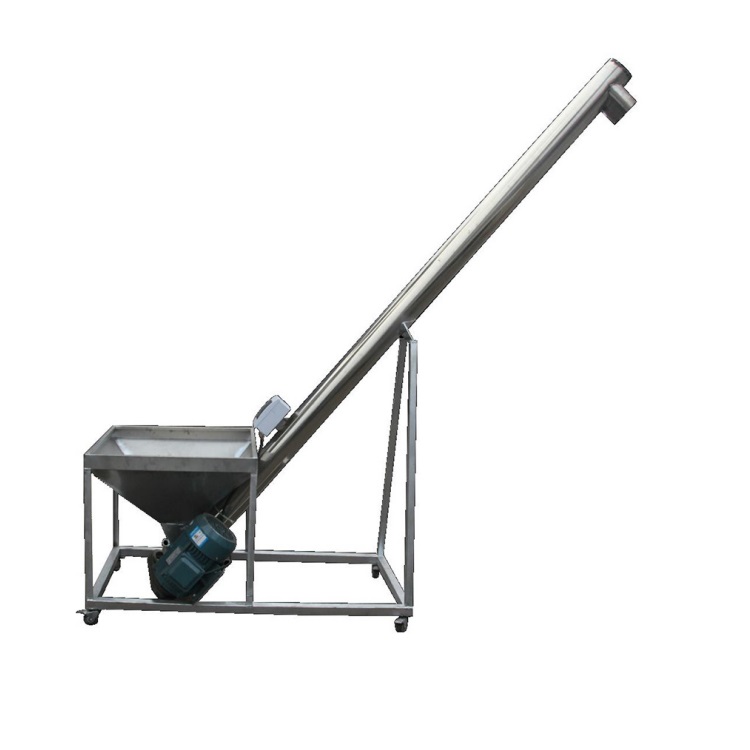

High Quality Powder And Granules Spiral Feeder Plastic Loader
Product Description:
The machine is of screw conveyor principle to use spring to convey the powder from the storage tank to the molding machine hopper till full fill material signals emitted by the material level, then it will start feeding again until the material level drops to a certain location, This repeated cycle, enabling feeding automation. It is mainly applied to the powder and particles of various materials, simplified, saving manpower, improve working conditions, easy to operate, and safety.
Technical Parameter:
Type | Feeder01-600 | Feeder01-1000 | Feeder01-2000 | Feeder01-3000 |
Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 |
Pushing motor power(kw) | 0.55 | 0.75 | 0.75 | 0.75 |
Loading pipe Dia.(mm) | 102 | 102 | 102 | 102 |
Capacity(kg/h) | 600 | 1000 | 2000 | 3000 |
Silo capacity(kg) | 80 | 150 | 200 | 250 |
Dimension of silo(cm) | 65×65×80 | 100×75×80 | 120×80×80 | 160×80×80 |
Weight(kg) | 80 | 150 | 200 | 300 |
High Quality Powder And Granules Spiral Feeder Plastic Loader
Product Description:
The machine is of screw conveyor principle to use spring to convey the powder from the storage tank to the molding machine hopper till full fill material signals emitted by the material level, then it will start feeding again until the material level drops to a certain location, This repeated cycle, enabling feeding automation. It is mainly applied to the powder and particles of various materials, simplified, saving manpower, improve working conditions, easy to operate, and safety.
Technical Parameter:
Type | Feeder01-600 | Feeder01-1000 | Feeder01-2000 | Feeder01-3000 |
Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 |
Pushing motor power(kw) | 0.55 | 0.75 | 0.75 | 0.75 |
Loading pipe Dia.(mm) | 102 | 102 | 102 | 102 |
Capacity(kg/h) | 600 | 1000 | 2000 | 3000 |
Silo capacity(kg) | 80 | 150 | 200 | 250 |
Dimension of silo(cm) | 65×65×80 | 100×75×80 | 120×80×80 | 160×80×80 |
Weight(kg) | 80 | 150 | 200 | 300 |
