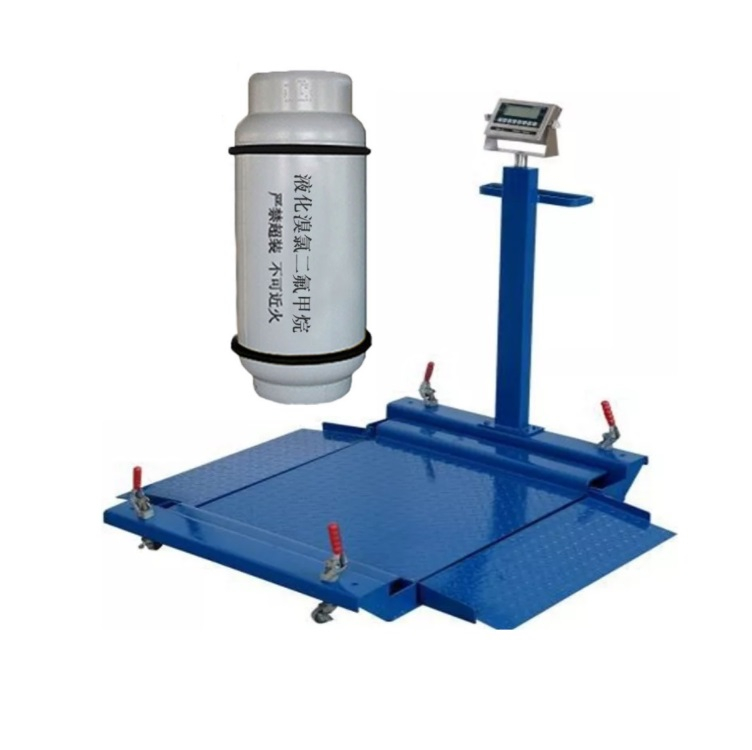

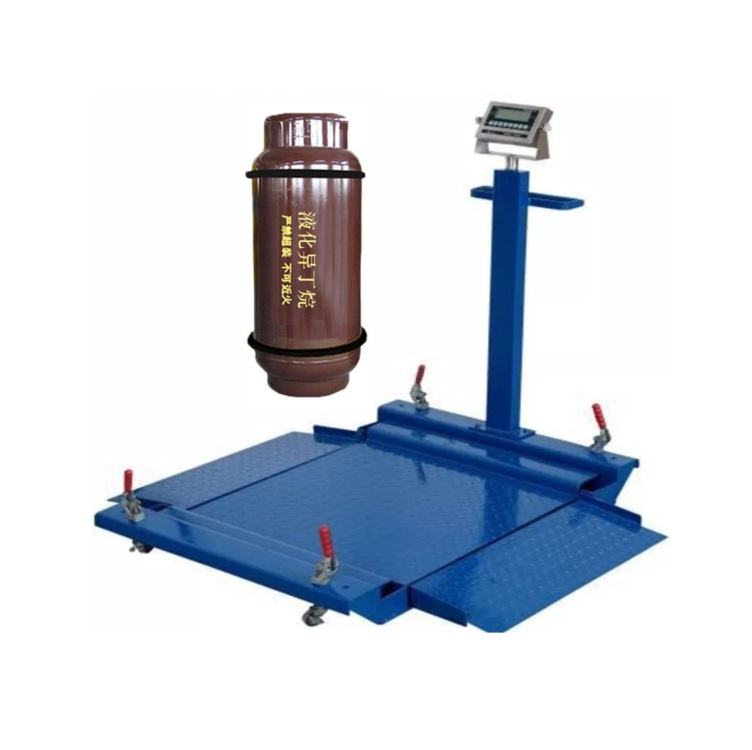

Intrinsically Safe Drum Scale Drum Scales & Industrial Weighing Systems Drum Floor Scale

Availability:
Quantity:

PDF Export


Description:

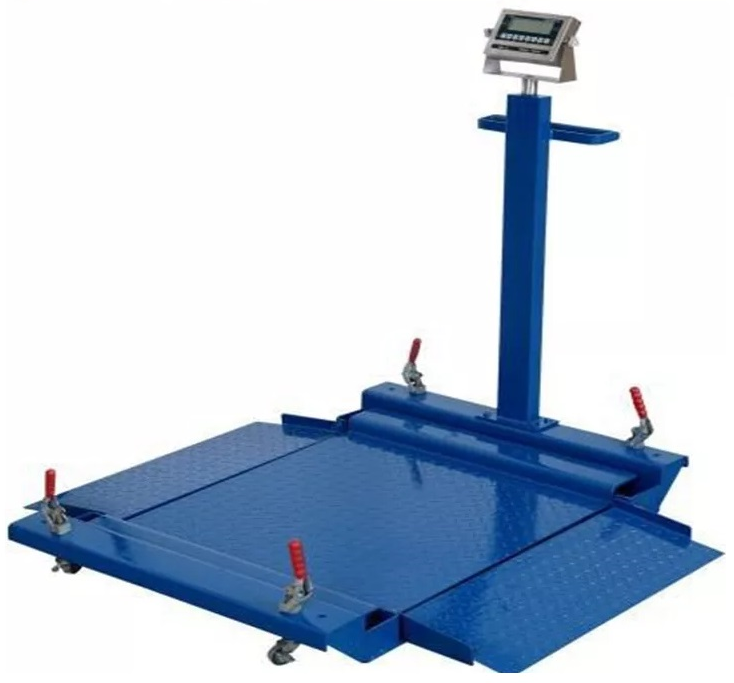

The WSF101 floor scale is combines robust construction and an exceptionally low profile. It is durable enough to provide accurate, reliable weighting while standing up to constant use in industrial environments. Integral side and end guards protect the load cells from accidental side-impact damage caused by forklifts and other equipment. The platform's ultra-low profile simplifies the job of moving loads onto and off the scale. Optional ramps and available to eliminate the need for lifting loads onto the platform. Out standard chequered plate surface provides safe footing for workers. Adjustable feet make it easy to level the scale on uneven floors. The Stainless Steel version is available in 304ss or 316ss and was designed specifically for the Food Industry, where harsh, wet environments are the norm. Its low-profile design minimizes operator effort wen Loading the scale platform. Installation is easy. FL02 floor scale can interface with all analog instruments and accessories.

Specifications

0.8mX0.8m

1mX1m

1.2mX1.2m

Capacity(Tonne)

0.3-0.6

0.3-0.6

0.3-0.6

1~2

1~2

1~2

Platform Height

35mm

45mm

45mm

Shipping Weight

90kg-105kg

120kg-130kg

150kg-170kg

Operating Temperture

-10-40

-10-40

-10-40

Construction

Epoxy-painted Mild steel. 304 or 316 Stainless steel



Options:

Stand-alone instrument column;

Ramp accessible;

Quick-Pit frames for easy in-floor installations;

Epoxy-painted Mild steel, 304 stainless steel or 316 stainless steel;

Custom sizes;

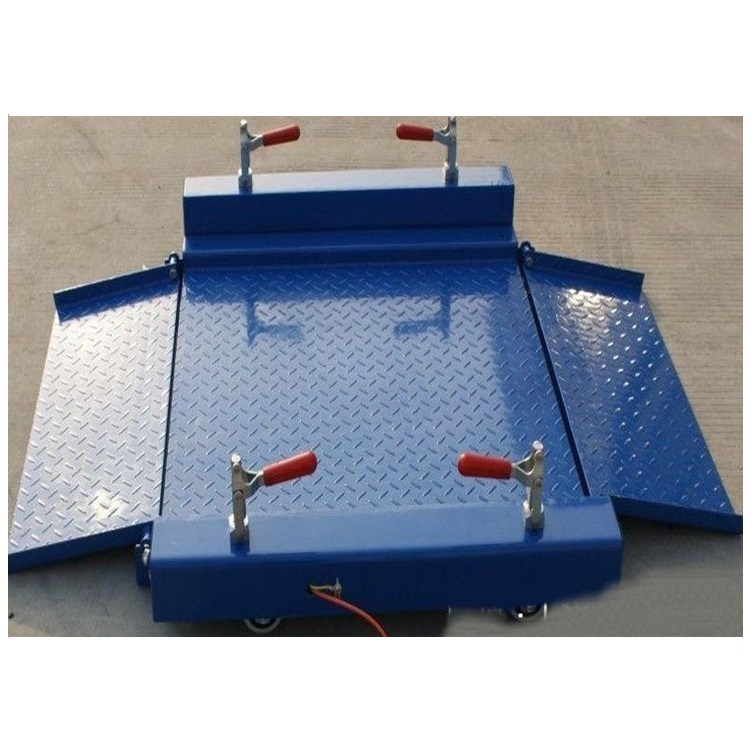

Intergral Ramps With Scale:

Features

Benefits

Rugged industrial construction

●100% end load; ideal for weighing skids and totes

On the shipping dock or fully loaded lift trucks in your procesing plant

Hermetically sealed,

Stainless steel loadcells

●Provides maximum protection in tough,wet,and chemically corrosive environments.

Threaded foot with ball-and-cup suspension

●A proven solution for easy installation and portability

Saftey Diamond plate

●Minimized risk of slipping on the scale

NTEP Apprvoal indicator

●IP65 . interface with PC or printer (opions)



Specification:

Item No.

Size

Max. cap

Division

Height

Net

(m×m)

(Tonne)

(kg)

(mm)

(kg)

WSF101-0.3/0.6-0808

0.8×0.8m

0.3/0.6t

0.1/0.2

35

80

WSF101-1/2-0808

0.8×0.8m

1~2t

0.2/0.5

45

90

WSF101-0.3/0.6-1010

1.0×1.0m

0.3/0.6t

0.1/0.2

35

100

WSF101-1/2-1010

1.0×1.0m

1~2t

0.2/0.5

45

120

WSF101-0.3/0.6-1212

1.2×1.2m

0.3/0.6t

0.1/0.2

35

125

WSF101-1/2-1212

1.2×1.2m

1~2t

0.2/0.5

45

150
