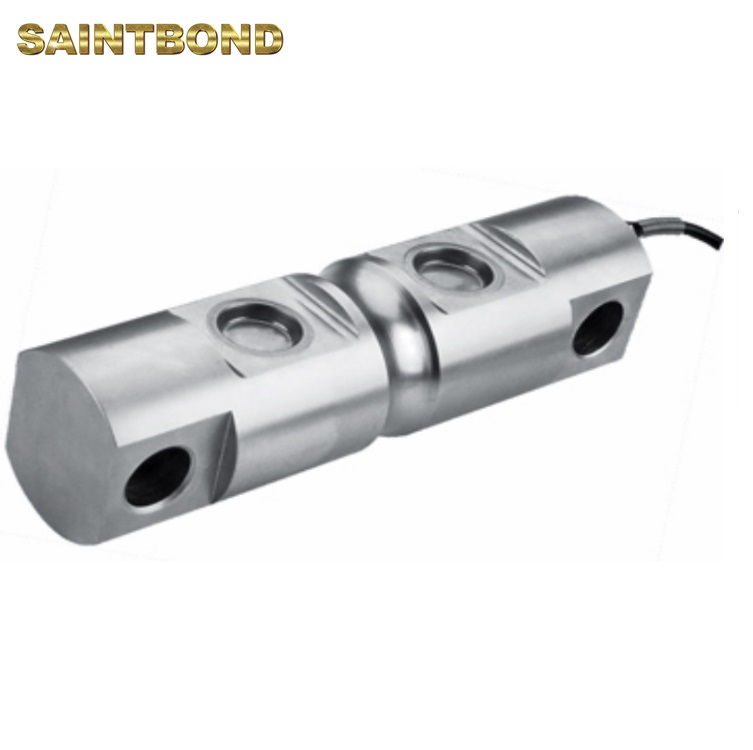

SAINTBOND In-line Load Cells
MiNi090 In-line Load Cells
Weighing
Resistance Sensor
Other
In-line Load Cells
100/200/300/500/1000kg
Stainless Steel
350±10Ω
350±10Ω
Welcome
OEM&ODM
1pcs per type per capacity
OEM & ODM Manufacture
Latest Style Compression Load Cell Super Micro Stainless steel In-line Load Cells
Technical Data:
Model | MiNi090 | Excitation,Recommended | ≤6VDC |
Rated Capacity | 100/200/300/500/1000kg | Operating Temp.Range | -10-+40℃ |
Accuracy Class | X | Safe Overload | 120%R.C. |
Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
Zero Balance | ±0.1 mV/V | Cable,Length | ø3mm×2m |
Input Resistance | 350±10Ω | Hysteresis Error | ±0.05%R.O. |
Output Resistance | 350±10Ω | Creep in 2 Min. | ±0.05%R.O. |
Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
Description:
SAINTBOND Miniature compression load cells are made of SAINTBOND’s advanced strain gauge
technology.These load cells are designed for applications in a space limited area.
The capacities of MiNi090 start from 100kg to 1000kg.The measuring accuracy is 0.05%R.O.
(R.O.=Rated Output).) Manufactured from high quality stainless steel of aviation standard.
MiNi090 load cells are mainly used for flat mounting weighing systems and force measuring in a
narrow space.
Features:
Tension and Compression load cells
Capacity:100kg,...,1000kg
Accuracy:0.05%R.O.
Super micro structure
Stainless steel construction
Environment protection class:IP65
Applications:
Flat mounting weighing systems,
Force measuring in a narrow space.
Latest Style Compression Load Cell Super Micro Stainless steel In-line Load Cells
Technical Data:
Model | MiNi090 | Excitation,Recommended | ≤6VDC |
Rated Capacity | 100/200/300/500/1000kg | Operating Temp.Range | -10-+40℃ |
Accuracy Class | X | Safe Overload | 120%R.C. |
Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
Zero Balance | ±0.1 mV/V | Cable,Length | ø3mm×2m |
Input Resistance | 350±10Ω | Hysteresis Error | ±0.05%R.O. |
Output Resistance | 350±10Ω | Creep in 2 Min. | ±0.05%R.O. |
Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
Description:
SAINTBOND Miniature compression load cells are made of SAINTBOND’s advanced strain gauge
technology.These load cells are designed for applications in a space limited area.
The capacities of MiNi090 start from 100kg to 1000kg.The measuring accuracy is 0.05%R.O.
(R.O.=Rated Output).) Manufactured from high quality stainless steel of aviation standard.
MiNi090 load cells are mainly used for flat mounting weighing systems and force measuring in a
narrow space.
Features:
Tension and Compression load cells
Capacity:100kg,...,1000kg
Accuracy:0.05%R.O.
Super micro structure
Stainless steel construction
Environment protection class:IP65
Applications:
Flat mounting weighing systems,
Force measuring in a narrow space.
