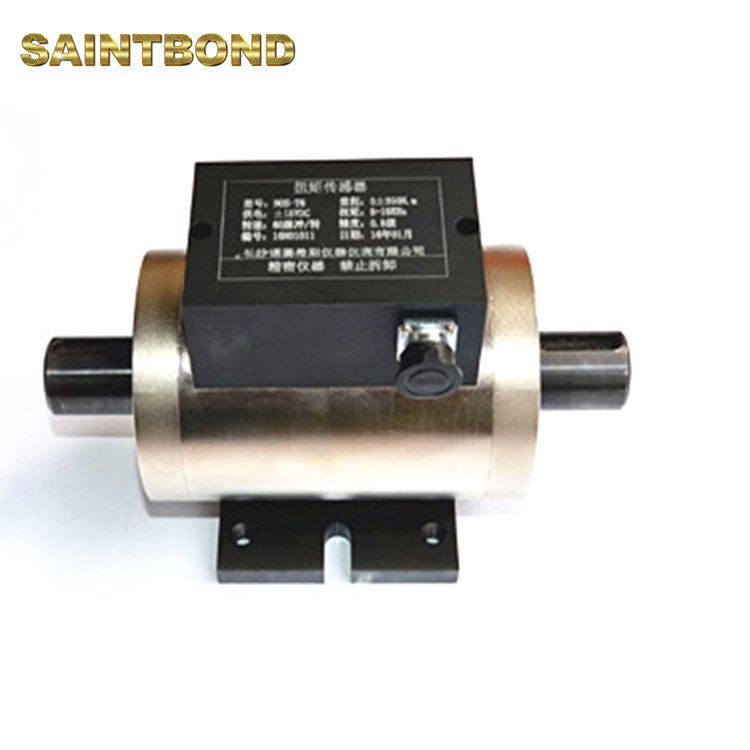

SAINTBOND Dynamic Torque Sensor
T6 Dynamic Torque Sensor
The electrical signal of the elastic axis is measured
Resistance Sensor
2.0mV/V or 3.0mV/V or according to customer's requirement
Dynamic Torque Sensor
Alloy Steel, Stainless Steel
Welcome
OEM&ODM
1pcs per type per capacity
25~45 DAYS
OEM & ODM Manufacture
Light Weight Small Torque Meter,Long Life Rotating Dynamic Torque Sensor
NM | ΦD | Φd | L | L1 | E | A | H | h | B |
1000 | 108 | 48 | 275 | 60 | 69 | 149 | 152 | 70 | 90 |
2000 | 118 | 55 | 298 | 70 | 69 | 152 | 164 | 77 | 124 |
5000 | 143 | 75 | 356 | 100 | 68 | 150 | 188 | 90 | 146 |
10-20thousand | 158 | 98 | 388 | 118 | 80 | 146 | 215 | 109 | 170 |
50thousand | 215 | 140 | 451 | 135 | 79 | 171 | 265 | 138 | 170 |
10thousand | 247 | 180 | 572 | 180 | 90 | 156 | 305 | 162 | 250 |
15thousand | 350 | 235 | 900 | 315 | 220 | 250 | 420 | 220 | 250 |
20thousand | 360 | 255 | 900 | 320 | 220 | 210 | 446 | 240 | 250 |
30thousand | 416 | 295 | 900 | 325 | 220 | 224 | 480 | 250 | 268 |
NM | F | s | c | RPM/Min | Weight | Key(L×W×H) |
1000 | 137.5 | 15 | 11 | 6300 | 9.6 | Double50×19×9 |
2000 | 149 | 15 | 11 | 5600 | 13.7 | Double60×16×10 |
5000 | 178 | 15 | 13 | 4800 | 22 | Double93×20×12 |
10-20thousand | 194 | 15 | 13 | 4000 | 34 | Double109×28×16 |
50thousand | 225.5 | 15 | 17 | 2800 | 55 | Double123×36 |
10thousand | 261 | 25 | 17 | 2200 | 85 | Double166×45×25 |
15thousand | 450 | 25 | 17 | 2000 |
| Double315×56×32 |
20thousand | 450 | 25 | 17 | 1800 |
| Double320×56×32 |
30thousand | 450 | 25 | 17 | 1800 |
| Double325×70×36 |
Measuring Range | 5,±(10. 20. 50. 100. 200. 500.1000 .2000 .5000 .10000.20000)NM | ||
Output Signal | 5KHZ-15KHZ,0-5V, 4-20mA | ||
Torque Precision | ± 0. 5 % F·S ,± 0. 3 % F·S(Optional) | ||
Signal | Torque signal, Speed Signal | ||
Response Frequency | 100 μ s | Use Temperature | -1 0~5 0 ℃ |
Nonlinear | ± 0. 3 % F · S | Storage Temperature | -20~70 ℃ |
Zero Temperature Drift | ± 0. 3 % F · S | Supply Voltage | ± 15V ± 5 % |
Insulation Resistance | >500M Ω | Load Current | <10mA |
Static Overload | 150% | Relative Humidity | ≤95%RH |
Light Weight Small Torque Meter,Long Life Rotating Dynamic Torque Sensor
NM | ΦD | Φd | L | L1 | E | A | H | h | B |
1000 | 108 | 48 | 275 | 60 | 69 | 149 | 152 | 70 | 90 |
2000 | 118 | 55 | 298 | 70 | 69 | 152 | 164 | 77 | 124 |
5000 | 143 | 75 | 356 | 100 | 68 | 150 | 188 | 90 | 146 |
10-20thousand | 158 | 98 | 388 | 118 | 80 | 146 | 215 | 109 | 170 |
50thousand | 215 | 140 | 451 | 135 | 79 | 171 | 265 | 138 | 170 |
10thousand | 247 | 180 | 572 | 180 | 90 | 156 | 305 | 162 | 250 |
15thousand | 350 | 235 | 900 | 315 | 220 | 250 | 420 | 220 | 250 |
20thousand | 360 | 255 | 900 | 320 | 220 | 210 | 446 | 240 | 250 |
30thousand | 416 | 295 | 900 | 325 | 220 | 224 | 480 | 250 | 268 |
NM | F | s | c | RPM/Min | Weight | Key(L×W×H) |
1000 | 137.5 | 15 | 11 | 6300 | 9.6 | Double50×19×9 |
2000 | 149 | 15 | 11 | 5600 | 13.7 | Double60×16×10 |
5000 | 178 | 15 | 13 | 4800 | 22 | Double93×20×12 |
10-20thousand | 194 | 15 | 13 | 4000 | 34 | Double109×28×16 |
50thousand | 225.5 | 15 | 17 | 2800 | 55 | Double123×36 |
10thousand | 261 | 25 | 17 | 2200 | 85 | Double166×45×25 |
15thousand | 450 | 25 | 17 | 2000 |
| Double315×56×32 |
20thousand | 450 | 25 | 17 | 1800 |
| Double320×56×32 |
30thousand | 450 | 25 | 17 | 1800 |
| Double325×70×36 |
Measuring Range | 5,±(10. 20. 50. 100. 200. 500.1000 .2000 .5000 .10000.20000)NM | ||
Output Signal | 5KHZ-15KHZ,0-5V, 4-20mA | ||
Torque Precision | ± 0. 5 % F·S ,± 0. 3 % F·S(Optional) | ||
Signal | Torque signal, Speed Signal | ||
Response Frequency | 100 μ s | Use Temperature | -1 0~5 0 ℃ |
Nonlinear | ± 0. 3 % F · S | Storage Temperature | -20~70 ℃ |
Zero Temperature Drift | ± 0. 3 % F · S | Supply Voltage | ± 15V ± 5 % |
Insulation Resistance | >500M Ω | Load Current | <10mA |
Static Overload | 150% | Relative Humidity | ≤95%RH |
