Zhejiang, China
SAINTBOND
Mini083
PRESSURE SENSOR
Analog SENSOR
Miniature Load Cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Description:
Features and applications: hollow structure, small size, strong stability, high speed dynamic corresponding, strong resistance to bias. The utility model is mainly applied to the tension and pressure of screws and bars, and the force measurement of a force measuring device in a plurality of occasions.
Technical Data:
Capacity | 0-50/100/200/500/1000N | Material | Stainless Steel |
Rated output | 2.0±20%mV/V | Output Impedance | 700±10Ω |
Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.2% F.S. | Recommended Excitation | 5V |
Repeatability | 0.2% F.S. | Excitation max | 10V |
Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.5 |
Protection Class | IP 66 | Ultimate Load Limit | 2 |
Input Impedance | 700±20Ω | Cable Length | ∅3 x 4m |
Wire Connection | Ex +:Red; Ex -: Black; Sig+:Green; Sig-:White | ||

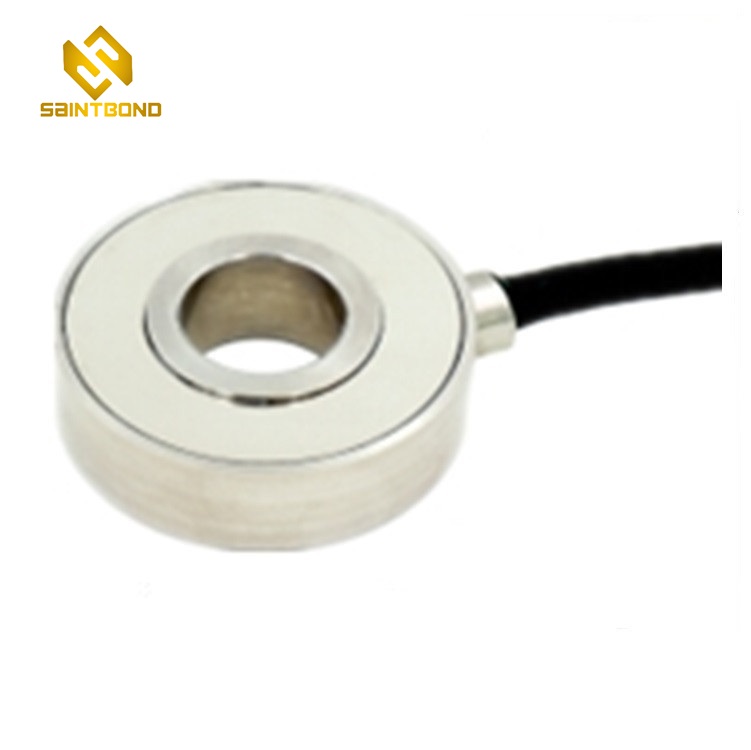

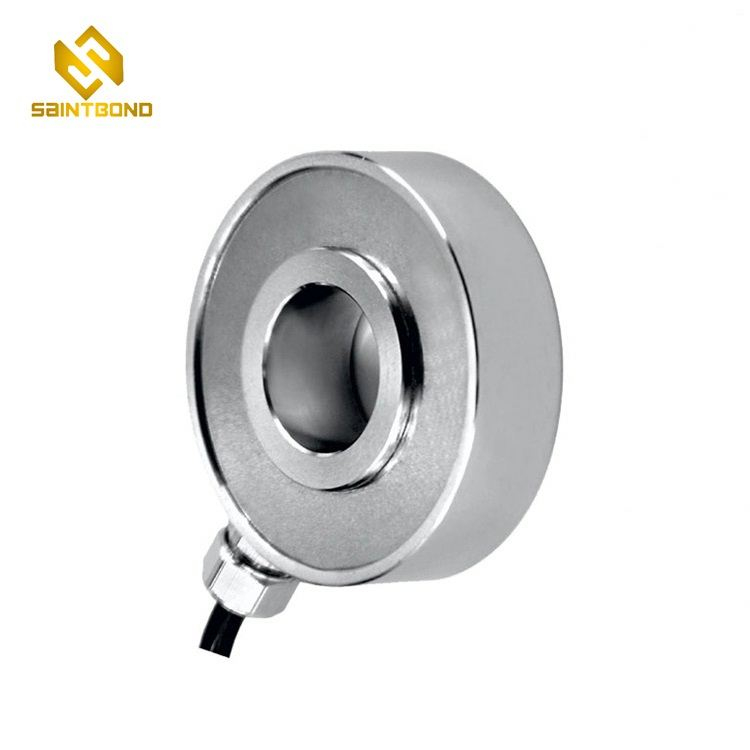

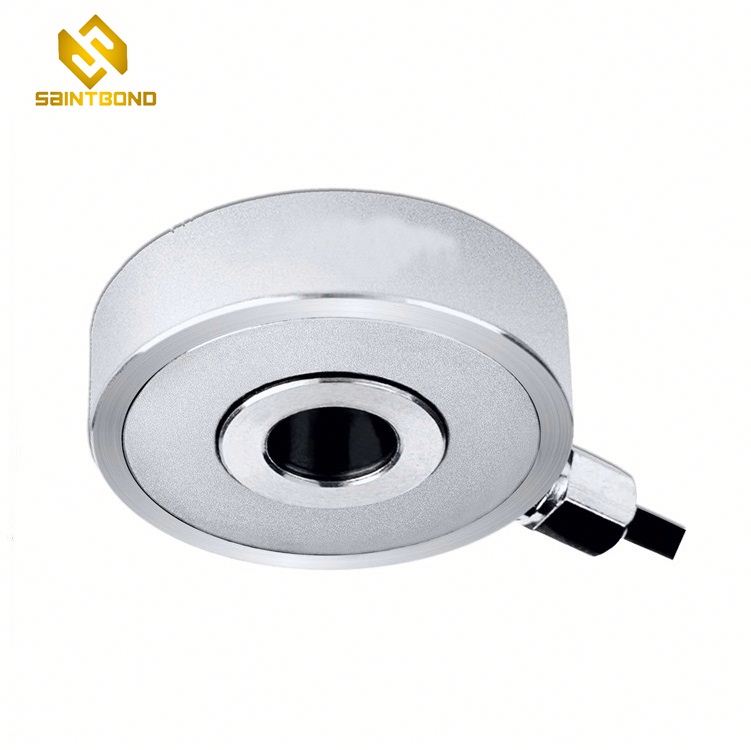

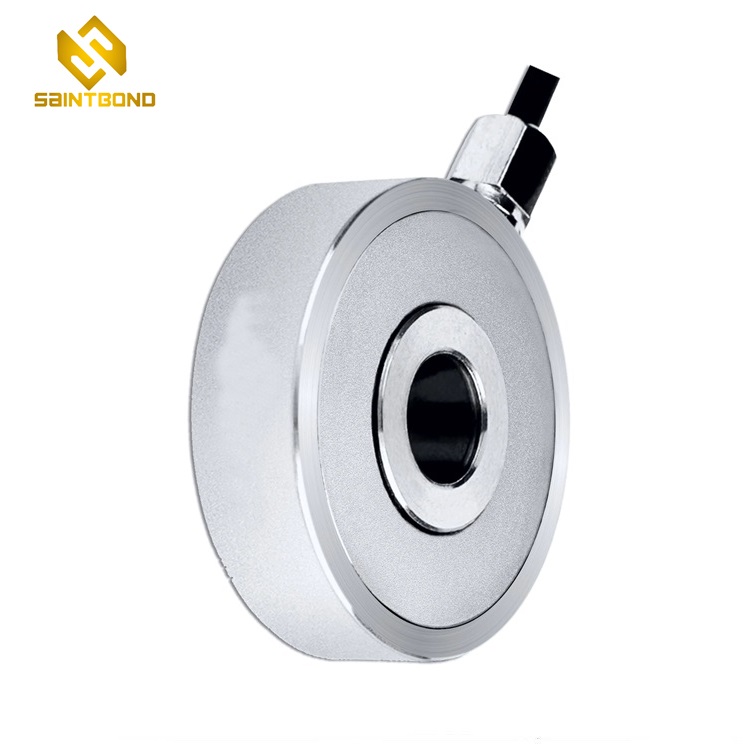

Mini083 Miniature Threaded Center Hole Load Cell
| Product Name | Mini083 Miniature Threaded Center Hole Load Cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Description:
Features and applications: hollow structure, small size, strong stability, high speed dynamic corresponding, strong resistance to bias. The utility model is mainly applied to the tension and pressure of screws and bars, and the force measurement of a force measuring device in a plurality of occasions.
Technical Data:
Capacity | 0-50/100/200/500/1000N | Material | Stainless Steel |
Rated output | 2.0±20%mV/V | Output Impedance | 700±10Ω |
Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.2% F.S. | Recommended Excitation | 5V |
Repeatability | 0.2% F.S. | Excitation max | 10V |
Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.5 |
Protection Class | IP 66 | Ultimate Load Limit | 2 |
Input Impedance | 700±20Ω | Cable Length | ∅3 x 4m |
Wire Connection | Ex +:Red; Ex -: Black; Sig+:Green; Sig-:White | ||
Mini083 Miniature Threaded Center Hole Load Cell
| Product Name | Mini083 Miniature Threaded Center Hole Load Cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
