Product Description:

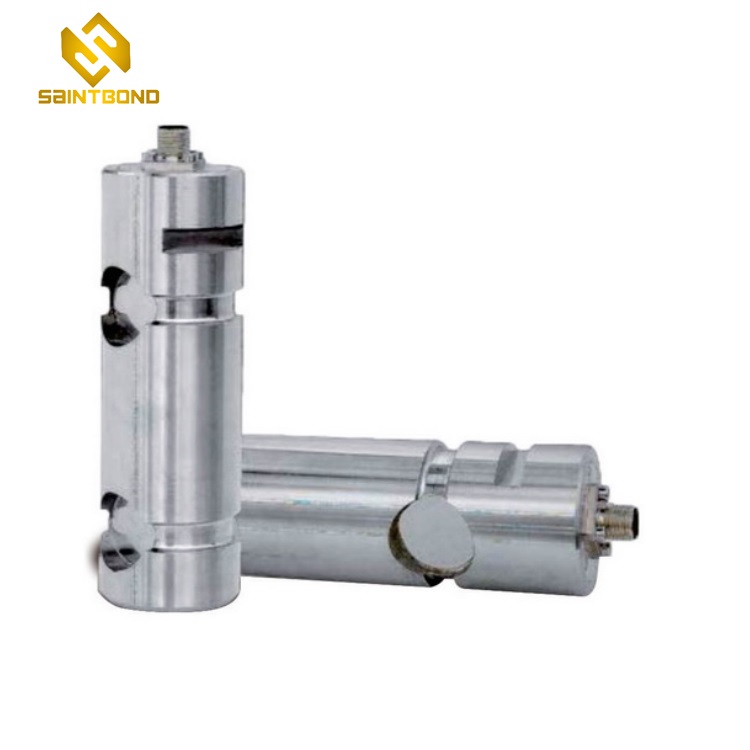

Stainless steel material, high strength, good load tolerance, suitable for severe environment. Temperature compensation technique ensures the high accuracy in different environment. Custom design to meet different applications. Well sealed for most industrial environments. Used as replacement for exiting shafts. The protection class is IP67, it can be used in harsh environment. Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.
Application:
Crane load monitoring; Hydraulic cylinder force measuring;
Anti-tilting at forklift trucks;
Tool monitoring for CNC machines;
Load measuring and monitoring at sailing boat
Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.

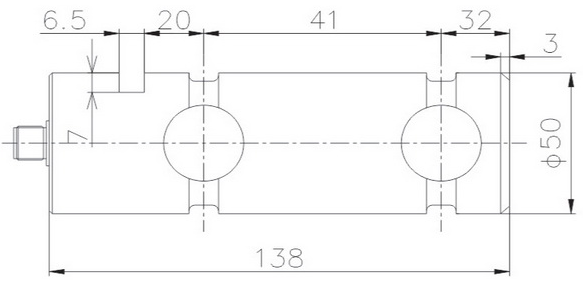

Dimension:
Specification:
Rated Load: | 2/3t | Operating Temp.Range: | -30~+70°C |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10°C | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10°C | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 750Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 700Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Moderate price load cell
| Product Name | Moderate price load cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Product Description:
Stainless steel material, high strength, good load tolerance, suitable for severe environment. Temperature compensation technique ensures the high accuracy in different environment. Custom design to meet different applications. Well sealed for most industrial environments. Used as replacement for exiting shafts. The protection class is IP67, it can be used in harsh environment. Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.
Application:
Crane load monitoring; Hydraulic cylinder force measuring;
Anti-tilting at forklift trucks;
Tool monitoring for CNC machines;
Load measuring and monitoring at sailing boat
Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.
Dimension:
Specification:
Rated Load: | 2/3t | Operating Temp.Range: | -30~+70°C |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10°C | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10°C | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 750Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 700Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Moderate price load cell
| Product Name | Moderate price load cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
