Zhejiang, China
SAINTBOND
SW6
battery
LCD with back light
Wireless crane load cell
Good quality and low price
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting) .Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard “LR6(AA)”size alkaline batteries. All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).Infrared Remote control easier to calibration(with password). Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.4 local mechanical keys u:“ON/OFF”, “ZERO”, “PEAK” and “Unit Change”. low battery warning;

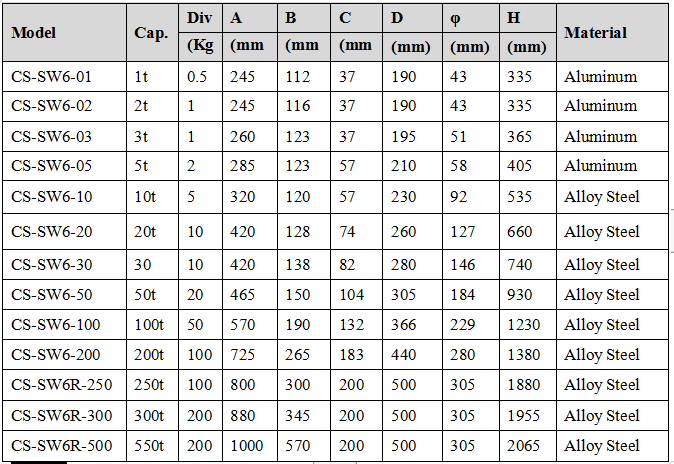

Dimension:
(Dimensions shown are nominal and subject to tolerances)
Weight:
Model | 1t | 2t | 3t | 5t | 10t | 20t | 30t |
Weight(kg) | 1.6 | 1.7 | 2.1 | 2.7 | 10.4 | 17.8 | 25 |
Weight with shackles(kg) | 3.1 | 3.2 | 4.6 | 6.3 | 24.8 | 48.6 | 87 |
Model | 50t | 100t | 200t | 250t | 300t | 500t |
|
Weight(kg) | 39 | 81 | 210 | 280 | 330 | 480 |
|
Weight with shackles(kg) | 128 | 321 | 776 | 980 | 1500 | 2200 |
|
Available options:
Hazardous area Zone 1 and 2
Built-in-display option
Available with a range of displays to suit each application
Environmentally sealed to IP67 or IP68
Can be used singularly or in sets
Wireless Load Links Typical Specifications:
Rate Load: | 1/3/5/12/25/35/50/75/100/150/200/250/300/500T | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Stable Time: | ≤10seconds; | System Range: | 500~800m |
Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |
Multiple Color Optional:
SW6 Weight Measuring Instrument Wireless crane load cell
| Product Name | SW6 Weight Measuring Instrument Wireless crane load cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting) .Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard “LR6(AA)”size alkaline batteries. All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).Infrared Remote control easier to calibration(with password). Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.4 local mechanical keys u:“ON/OFF”, “ZERO”, “PEAK” and “Unit Change”. low battery warning;
Dimension:
(Dimensions shown are nominal and subject to tolerances)
Weight:
Model | 1t | 2t | 3t | 5t | 10t | 20t | 30t |
Weight(kg) | 1.6 | 1.7 | 2.1 | 2.7 | 10.4 | 17.8 | 25 |
Weight with shackles(kg) | 3.1 | 3.2 | 4.6 | 6.3 | 24.8 | 48.6 | 87 |
Model | 50t | 100t | 200t | 250t | 300t | 500t |
|
Weight(kg) | 39 | 81 | 210 | 280 | 330 | 480 |
|
Weight with shackles(kg) | 128 | 321 | 776 | 980 | 1500 | 2200 |
|
Available options:
Hazardous area Zone 1 and 2
Built-in-display option
Available with a range of displays to suit each application
Environmentally sealed to IP67 or IP68
Can be used singularly or in sets
Wireless Load Links Typical Specifications:
Rate Load: | 1/3/5/12/25/35/50/75/100/150/200/250/300/500T | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Stable Time: | ≤10seconds; | System Range: | 500~800m |
Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |
Multiple Color Optional:
SW6 Weight Measuring Instrument Wireless crane load cell
| Product Name | SW6 Weight Measuring Instrument Wireless crane load cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
