Stainless Steel
Us Type
Bow
Other
Zhejiang, China

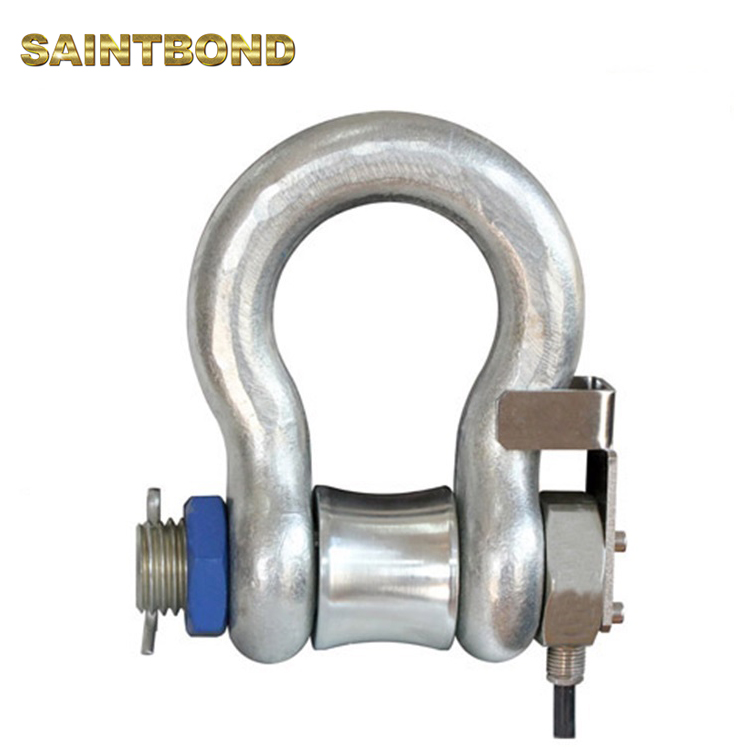

SAINTBOND Lifting Load Shackle
LS03 Lifting Load Shackle
Lifting Load Shackle
0.5t~1200t
5-10V
2 Pcs
OEM&ODM
45 -50DAYS
15~30Days
15 years experience on Load Cell
Standard shackle load cell load cell 200 ton tester alloy steel and Stainless steel construction Lifting Load Shackle
Features:
•Monitors traction force and other force measurement
•Available in 7 standard ranges between0.5t and 1200t
•Alloy steel and Stainless steel construction
•Special execution for harsh environmental conditions (IP66)
•High reliability for strict safety requirements
•Simple installation for cost-saving solutions to measurement problems
pecifications:
Capacity: | 0.5t~1200t |
Safety Overload: | 150% of rated load |
Protection Class: | IP66 |
Bridge Impedance: | 350ohm |
Power Supply: | 5-10V |
Combined Error(Non-linearity+Hysteresis): | 1 to 2% |
Operating Temperature: | -25℃ to +80℃ |
Storage Temperature: | -55℃ to +125℃ |
Temperature Influence on zero: | ±0.02%K |
Temperature Influence on Sensitivity: | ±0.02%K |
Standard shackle load cell load cell 200 ton tester alloy steel and Stainless steel construction Lifting Load Shackle
Features:
•Monitors traction force and other force measurement
•Available in 7 standard ranges between0.5t and 1200t
•Alloy steel and Stainless steel construction
•Special execution for harsh environmental conditions (IP66)
•High reliability for strict safety requirements
•Simple installation for cost-saving solutions to measurement problems
pecifications:
Capacity: | 0.5t~1200t |
Safety Overload: | 150% of rated load |
Protection Class: | IP66 |
Bridge Impedance: | 350ohm |
Power Supply: | 5-10V |
Combined Error(Non-linearity+Hysteresis): | 1 to 2% |
Operating Temperature: | -25℃ to +80℃ |
Storage Temperature: | -55℃ to +125℃ |
Temperature Influence on zero: | ±0.02%K |
Temperature Influence on Sensitivity: | ±0.02%K |
