Zhejiang, China

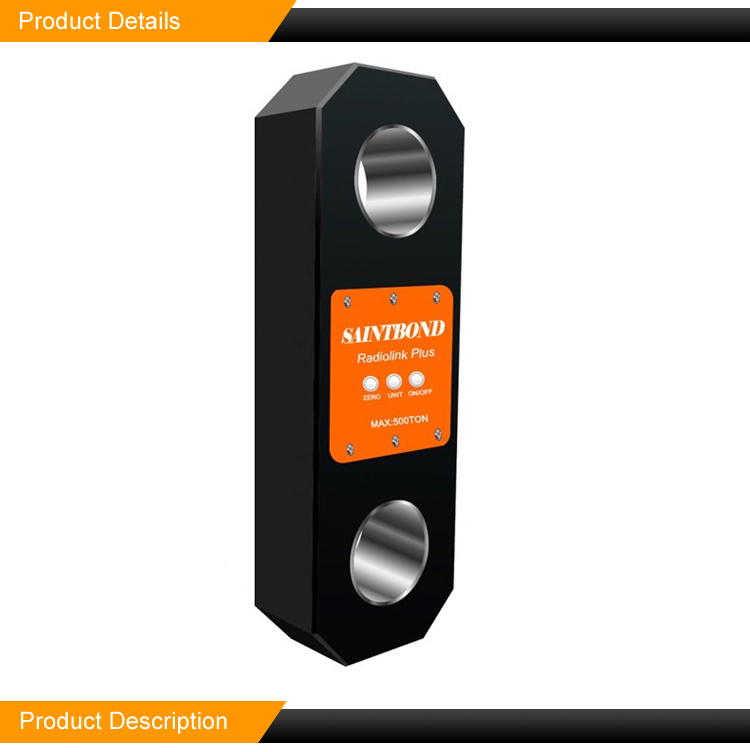

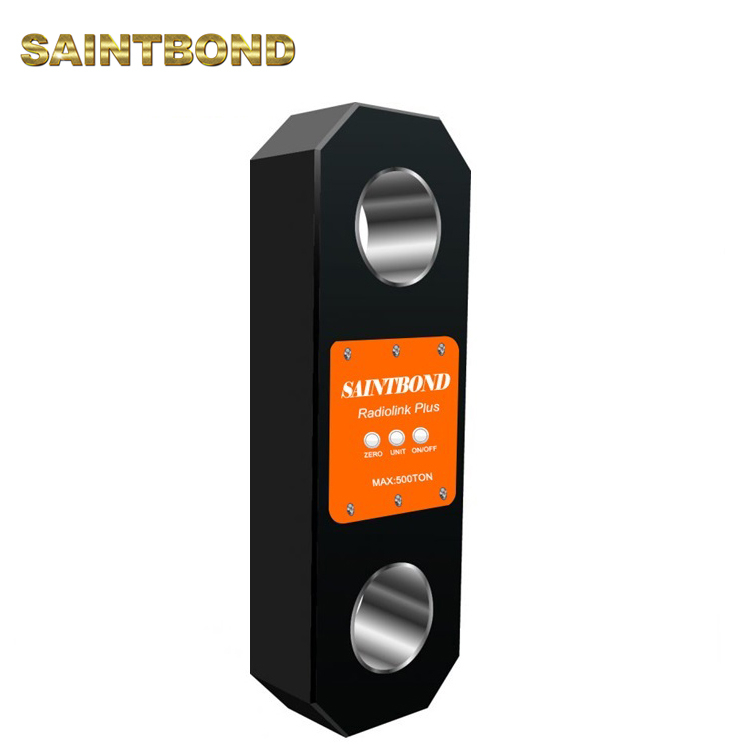

SAINTBOND Wireless Compression Load Cell
LL01 Wireless Compression Load Cell
Weighing
Other
Digital Sensor
Wireless Compression Load Cell
15 years experience on Load Cell
18650 rechargeable batteries or polymer batteries
2 Pcs
OEM&ODM
45 -50DAYS
15~30Days
1/205/5/12/25/35/50/75/100/150/200/250/300/500T
IP68 Quality guaranteed miniature black marine load cell,wireless compression Load Celler

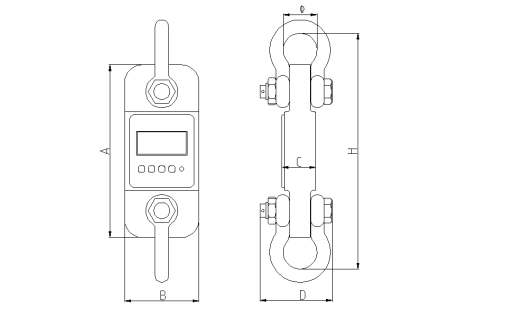

Dimensions shown are nominal and subject to tolerances
Model | Cap. | Div | A | B | C | D | φ | H | Material |
(Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
LL01-01 | 1t | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
LL01-02 | 2t | 1 | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
LL01-03 | 3t | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
LL01-05 | 5t | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
LL01-10 | 10t | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
LL01-20 | 20t | 10 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
LL01-30 | 30 | 10 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
LL01-50 | 50t | 20 | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
LL01-100 | 100t | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
LL01-200 | 200t | 100 | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |
LL01R-250 | 250t | 100 | 800 | 300 | 200 | 500 | 305 | 1880 | Alloy Steel |
LL01R-300 | 300t | 200 | 880 | 345 | 200 | 500 | 305 | 1955 | Alloy Steel |
LL01R-500 | 550t | 200 | 1000 | 570 | 200 | 500 | 305 | 2065 | Alloy Steel |
wireless Load Links Typical Specifications:
Rate Load: | 1/205/5/12/25/35/50/75/100/150/200/250/300/500T | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Stable Time: | ≤10seconds; | System Range: | 500~800m |
Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |
