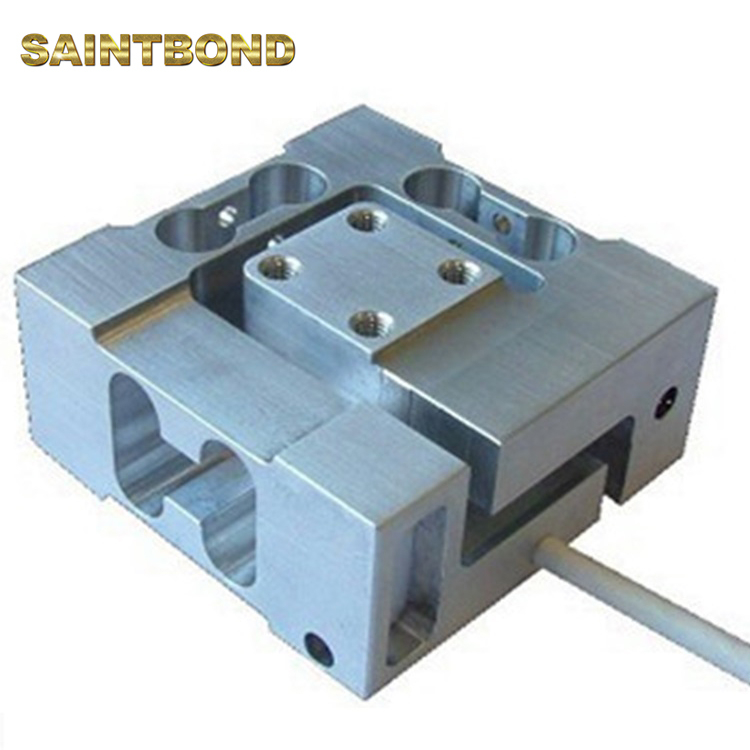

SAINTBOND Multi Axis Transducer
MX001 Multi Axis Transducer
Measured weight of goods
Turn a signal to a force signal
2.0mV/V or 3.0mV/V or according to customer's requirement
Multi Axis Transducer
Aluminum-alloy
Welcome
OEM&ODM
1pcs per type per capacity
25~45 DAYS
OEM & ODM Manufacture
For automotive medical device 3 axis load cell,Aluminum-alloy multi axis transducer
Capacity: | ±2N~~±20N | Temp. effect on zero: | ≤0.02% of applied output/ºC |
Rated Output: | 0.5mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.5% of rated output | Safe Overload: | 1.5 |
Nonlinearity: | ±0.5% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Hysteresis: | ±0.5% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Repeatability: | ±1.0% of rated output | Rated Excitation: | 10V DC/AC |
Temp. Effect On Output: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AV |
Features:
Three dimensional force sensor: also known as the three axis force sensor, three force sensor,
three component force sensor, multidimensional force sensor, dynamic force sensor,
three to three axis force sensor dynamic, three component force sensor dynamic, multidimensional
dynamic force sensor.
It is based on the principle of resistance strain, real-time measurement of objects in the direction of
the X/Y/Z three static and dynamic force, the use of anti deflection design, effectively reduce the
crosstalk between the three axes. The sensors are widely used in aerospace, robotics, automotive and
medical research and other fields.
For automotive medical device 3 axis load cell,Aluminum-alloy multi axis transducer
Capacity: | ±2N~~±20N | Temp. effect on zero: | ≤0.02% of applied output/ºC |
Rated Output: | 0.5mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.5% of rated output | Safe Overload: | 1.5 |
Nonlinearity: | ±0.5% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Hysteresis: | ±0.5% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Repeatability: | ±1.0% of rated output | Rated Excitation: | 10V DC/AC |
Temp. Effect On Output: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AV |
Features:
Three dimensional force sensor: also known as the three axis force sensor, three force sensor,
three component force sensor, multidimensional force sensor, dynamic force sensor,
three to three axis force sensor dynamic, three component force sensor dynamic, multidimensional
dynamic force sensor.
It is based on the principle of resistance strain, real-time measurement of objects in the direction of
the X/Y/Z three static and dynamic force, the use of anti deflection design, effectively reduce the
crosstalk between the three axes. The sensors are widely used in aerospace, robotics, automotive and
medical research and other fields.
